Project Description

  • Lightide-high-power-emergency-battery-UFO-LED-high-bay-lights-100W-240W
  • Lightide high power Emergency battery led high bay Luminaire

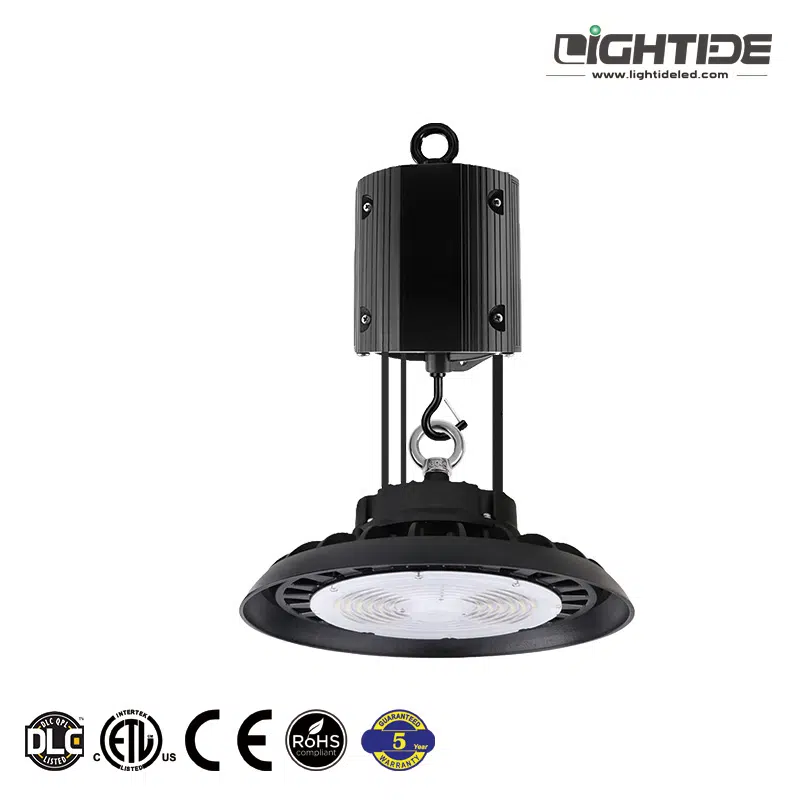

LED Emergency Light For High Bay Ceiling Lighting

High Bay LED emergency light battery operated are used to provide backup industrial lighting in the event of a power disruption. Moreover, they can deliver efficiently, uniform, high lumen output for high bay and low bay applications, such as in commercial, industrial, retail, and plant, etc.

  • Conforms to UL 924 & CEC Title 20
  • Emergency battery backup – min. of 90 minutes
  • Excellent Performance – 140+ lumens per watt.
  • Push-button testing system
  • Standard 0/1-10Vdc Dimming
  • 5-year Warranty
  • Listings -ETL/cETL, CE & RoHS, IP65 rated
Datasheet
Inquiry To Us

Features & Benefits

NFPA 101 Compliant

An average of 1 foot candle and a minimum of 0.1 foot candle when installed according to guidelines.

Battery Backup

UL924 & CE Recognized emergency battery backup with self-test/self-diagnostics function.

High Efficacy 140+ LPW

High-performance output with 140+ lumens per watt.

IP65 Rated

 IP65 rated waterproof for the warehouse, parking garage lighting.

Optical Design

Unique lens distribution design to for 60o , 90o and 120o for option.

Motion Sensor

The sensor is available to switch on the high bay light when motion is detected.

ETL/cETL/CE

 ETL/cETL listed with standard UL1598, CAN/CSA -C.22.2 NO. 250.0. CE certified.

Long-Term Warranty

5-10 years warranty. Easy and fast replacement is offered if any quality issue.

LED emergency light battery backup comes with a UL924 and CE certified battery,  usually about 90 minutes by code. In addition, they are a one-for-one replacement for HID or MH fixtures in high ceiling locations. Above all, these led emergency lighting fixtures deliver industry-leading efficacy 140 LPW to replace 1000W MH lamps.

So these battery-operated high bay ceiling lights are suitable for pendant or ceiling mount and can be installed onto most types of surfaces. On the other hand, the universal hanging ring allows for effortless installation.

LED Emergency Lighting Intelligent Battery

  • UL924, CSA C22.2 NO.141, and CE certificate
  • IP65 rated for indoor & outdoor installation
  • Intelligent emergency detection function- For example, the led emergency high bay lighting can switch to emergency mode automatically when power is off.
  • Meanwhile, overcharge protection, over-discharge protection, and short-circuit protection also are integrated.

UL 924 logo

Unique Heat Dissipation Design

  • Firstly, UFO led high bay lights provide a unique cooling aluminum heat sink.
  • Secondly, these led emergency high bay is made of high-duty die-casting aluminum alloy case.
  • Up-down heat sink dissipation system.

fins heat sink design

 Test Push Button

  • Std. push button for checking if it can work under emergency mode.
  • Integrated with indicator lamp



push-test-button

 LED Vs Metal Halide Lamp

  • High Performance- Up to high 140+ LPW. So 100W LED High Bay Emergency Lights are easy to replace 400W metal halide lamps.
  • Energy Saving- In other words, in extreme contrast to conventional metal-halides, this battery operated ceiling lights can bring in 80% of energy savings.
  • Long Lifetime – L70>60,000 hrs.  This is to say, at 8 hours daily use, Lightide’ s high bay led light battery backup is rated to last 17 years.
SMD led 3030 for led WALL PACK
SMD led
⇔
MH-lamp
60 watts 150-175 watts
100 watts 250-400 watts
150 watts 400-600 watts
200 watts 600-1000 watts
240 watts 1000-1500 watts

Application

 In short, powder-coated finish for rust and corrosion-proof.  Certainly, waterproof IP65 rated battery powered led pendant light perfects for

  • retail stores,
  • wholesale warehouses,
  • grocery chains,
  • malls,
  • showrooms,
  • and plants.
Lightide led-high-bay-lights-for-metro-lighting

White finish emergency UFO led high bay lights battery backup

(Cold Precision Forging housing)



LED Emergency Lights Order Information

 Sample:  LT-UBA320-150W-HV-50K-EMH-2H

LT-UBA-320-150W-HV-50K-EMH-Std.






Emergency time:  Std=90 minutes, 2H=120 minutes, 3H=180 minutes

Accessory: MS=Motion Sensor, EMH=Hi-power Emergency Kit, PC=Photocell
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Blanket=100-277vac,  HV=100-347vac (*)
Power option: 100W, 150W, 200W, 240W
Dimension Code: 280, 320, 400
Type Code: A, B, C, D
Desc: UFO Bay LED Light

* External emergency driver



LED Emergency Lights Specification

Model#RatingLumen OutputEquiv.Emergency Voltage OptionDimmingCCT Option

LT-UBA280-100W-EMH

100W

14094 lm

400W MH

30W

100-277vacStd. 1-10Vdc2700K-6500KREVIEW

LT-UBA320-150W-EMH

150W

20945 lm

600W MH

40W

100-277vacStd. 1-10Vdc2700K-6500KREVIEW

LT-UBA400-200W-EMH

200W

28009 lm

600W MH

40W

100-277vacStd. 1-10Vdc2700K-6500KREVIEW

LT-UBA400-240W-EMH

240W

33400 lm

1000W MH

60W

100-277vacStd. 1-10Vdc2700K-6500K REVIEW



LED Emergency Lights Compliant Standards

CertificateETL/cETL, CE & RoHS
EMC/FCC/IC StandardEN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard

UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1,

UL924, CSA C22.2 NO.141, NFPA 101 Compliant

NO.DescriptionDocumentVersionDate
1Lightide Battery Operated LED High Bay Ceiling Lights Datasheet
Download
A2020-08
2Lightide Battery Operated LED High Bay Ceiling Lights Sales Sheet
Download
A2020-08
3Lightide UFO LED High Bay Emergency Battery Backup Installation Manual
Download
 B 2020-02
