Project Description

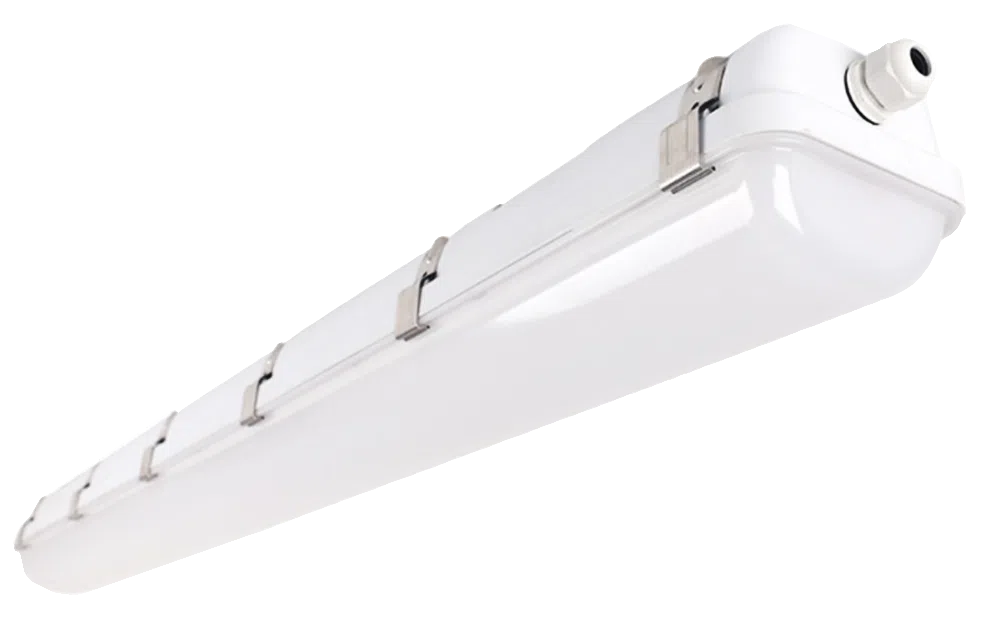

LED Garage Lights | Parking Lot W/ CCT & Power Selectable
Vapor Tight | J-Box Install | Emergency Backup
Linear LED parking garage Lights to offer higher lumen output with a new better light distribution design. You may select the power and CCT on-site freely as per your request through slide switches. And the switch is built together with the led driver. You also may get reliable backup lighting through optional emergency backup. Therefore, these led garage lighting fixtures are commonly used for mechanic shops, workstations, parking garages, warehouses, etc.
- Excellent Performance – Outputs up to 130 lumens per watt (Frosty).
- Selectable Power Range from 32W-40W-50W or 40W-50W-60W in one fixture.
- Selectable CCT Range from 3000K-4000K-5000K
- 5-year Warranty – No-compromise warranty covered.
- Listings: ETL/cETL, CE/ROHS
- Bi-level Motion Sensor with ON/OFF and 3-step dimming.
- Emergency Backup is available.
Features & Benefits
Power & CCT Selectable On-site
These LED garage lighting fixtures are allowed 3 different wattage and CCT settings with two simple slide switches, such as 32W-40W-50W, 3000K-4000K-5000K.
This flexible choice capability allows for a cost-effective method to reduce stocking inventory by 88% (1 SKU instead of 9).
Bi-Level Motion Sensor
This microwave sensor achieves tri-level dimming control, for the same areas that require a light change notice before switching off. Moreover, it also offers 3-step of the light control : 100%–dimming light (0,10%,30%,50%) –off.
Order Information | LED Garage Lights
Sample: LT-VTA4-40-CPT-MS-EM-C
| LT- | VT | -A | -4 | -40 | -CP | -T | -PC | -C | |
| Cover Option: Std.=Frost, C=Clear | |||||||||
| Accessory: MS=Motion Sensor, EM=Emergency Backup | |||||||||
| (CP)T: Power & CCT Adjustable T: 3000K-4000K-5000K | |||||||||
| CP: Power Adjsutable | |||||||||
| Power Code: 40=range from 32W-40W- 50W, 50= 40w-50w-60w | |||||||||
| Length Code: 4=4ft | |||||||||
| Code: A, B, C, D | |||||||||
| Desc: Vapor Tight rated led high bay light | |||||||||
Specification | LED Garage Lights
| Model# | Rating | Lumen Output | Equivalent | Cover | Length | Voltage | CCT Option |
| LT-VTA440CPT | Adjustable Range of 32W-40W-50W | 130 LPW | 2X36W CFL | Frost/Clear | 4′ | 120-347VAC |
Adjustable range of 3000K-4000K-5000K |
| LT-VTA450CP | Adjustable Range of 40W-50W-60W | 130 LPW | 2X56W CFL | Frost/Clear | 4′ | 120-277VAC | 2700~6500K |
Compliant Standards | LED Garage Lights
| Certificate | ETL/cETL Wet Location |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924 |
| NO. | Description | Document | Version | Date |
| 1 | Datasheet | A1 | 2022-01 | |
| 2 | Sales sheet | A | 2020-08 |
