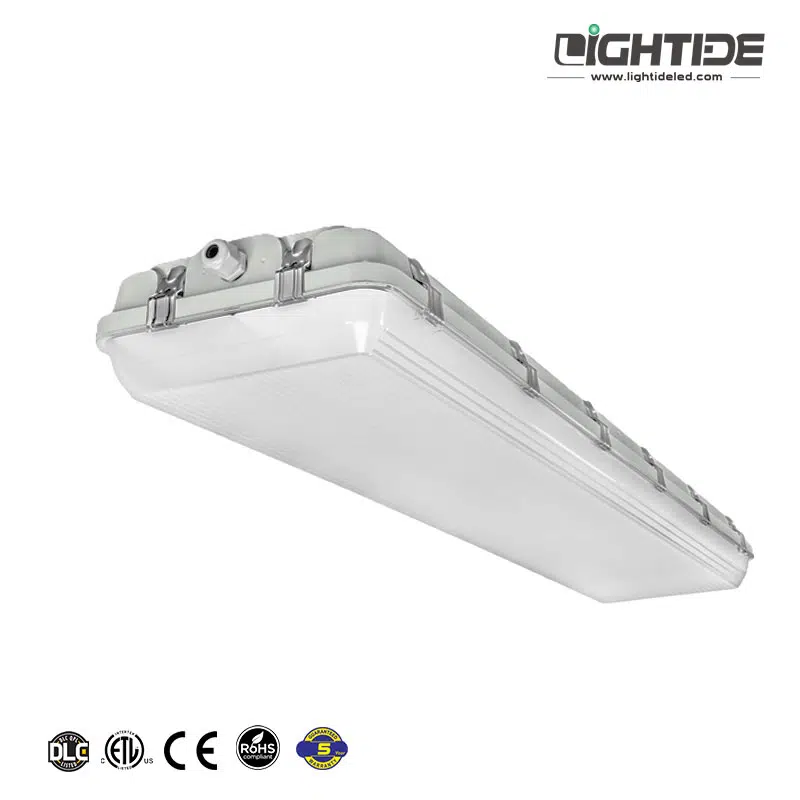

4 ft LED Shop Light Fixtures
Brighten Up Your Space with 4 ft led light fixtures!
The linear LED 4 ft shop light fixtures feature adjustable wattage ranges of 32-44-50 watts and selectable CCT ranges of 30K-40K-50K. Additionally, these fixtures are built with shatter-proof housing and have a waterproof IP66 rating. This makes them ideal for harsh environments, as they can protect the light source from dust and moisture. Overall, the 4 foot vapor tight LED light fixtures are a powerful lighting option.
- Excellent Performance – Outputs up to 150 lumens per watt.
- Selectable Wattage
- Selectable CCT
- IK08 Rated
- UL94 V0 rated & shatter-proof case
- 5-year Warranty – No-compromise warranty covered.
- Listings: DLC, ETL/cETL, CE/ROHS
- Emergency Battery Backup is available.
- IP66 rated
Order Information | LED 4 ft Shop Light Fixtures
Sample: LT-TPA440CPT-W-PC-C
| LT- | TPA | 4 | 40 | CPT | W | PC | C | |
| Cover Option: Blank=Frost, C=Clear |
||||||||
| Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Backup | ||||||||
| W |
||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K, CPT=CCT Selectable 3000K-4000K-5000K | ||||||||
| Power Code: 20, 36, 40,08, 100, 120, 150 | ||||||||
| Length Code: 2=2′, 4=4′, 8=8′ | ||||||||
| Desc: Vapor Tight rated led high bay light | ||||||||
Specification | LED 4 ft Shop Light Fixtures
| Model# | Power Rating | Lumen Output | Equivalent | Length | CCT Option |
| LT-TPA220 | Adjustable Range of 18w-22w-27W | 4,050 lumens | 2X10W CFL | 2′ |
|
| LT-TPA444 | 40W | 6,000 lumens | 2X40W CFL | 4′ | |
| LT-TPA444CP | Adjustable Range of 32w-40W-50W | 7,500 lumens | 2X40W CFL | 4′ | |
| LT-TPA450 | 50W | 7,500 lumens | 2X50W CFL | 4′ | |
| LT-TPA4100 | 100W | 13,000 lumens | 6X40W CFL | 4′ | Simple CCT |
| LT-TPA4120 | 120W | 15,600 lumens | 6X40W CFL | 4′ | Simple CCT |
| LT-TPA4150 | 150W | 19,500 lumens | 8X40W CFL | 4′ | Simple CCT |
Compliant Standards | LED 4 ft Shop Light Fixtures
| Certificate | DLC Premium, ETL/cETL Wet Location |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924 |
| NO. | File | IES Document | |
| 1 | |||
| 2 | |||
| 3 |
Feature & Benefit
Whether you need help with choosing the best style for your project or want to save money and experience excellent satisfaction both for a short period of time or for the long haul, we are here for you.
Field-Selectable
Wattage & CCT Adjustable
These garage lighting fixtures are allowed 3 different wattage settings with a simple slide switch, such as 32W, 40W or 44W, and 50W.
This flexible choice capability allows for a cost-effective method to reduce stocking inventory by 88% (1 SKU instead of 9).
Emergency Solution
Battery Backup
These 4ft led waterproof lights can be built with a UL924 & CE-certified battery for backup lighting. This way they can get people out of the building in case of power outages, blackouts, fires, etc.
Shatter-Proof
IK08 Rating
These vapor tight led strip lights are made of polycarbonate rated with IK08 and waterproof IP65. This way these fixtures are suitable to keep moisture and vapors from entering inside the fixture at any time.
Waterproof Rated
IP66 Rated
These 4 ft led light fixtures are fully protected against dust and powerful water jets, making them suitable for both indoor and outdoor applications. No matter the weather, our lights shine bright.
