Project Description

  • ufo high bay light fixtures 170 LPW

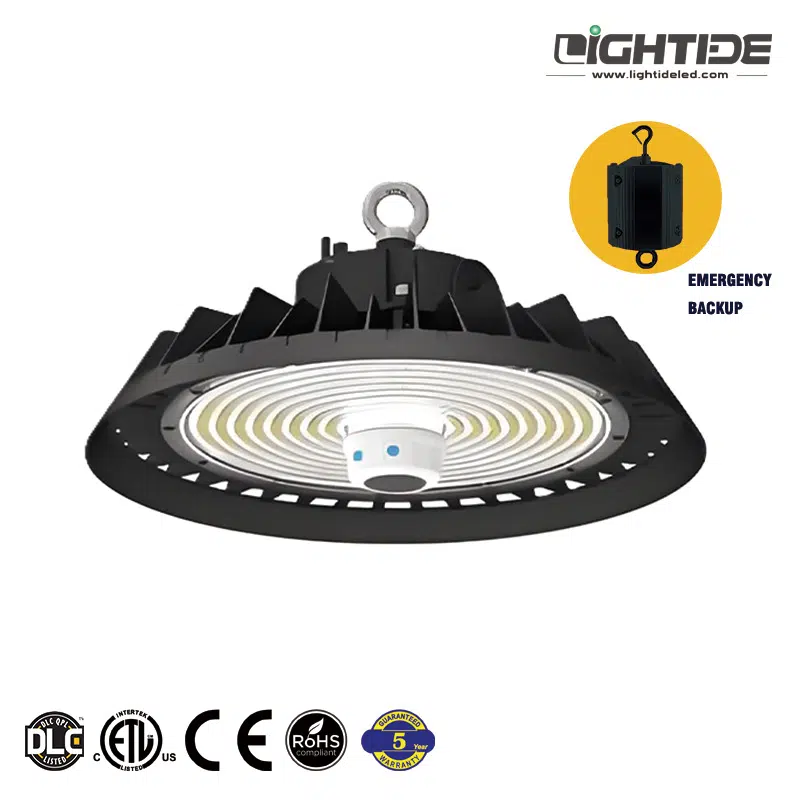

UFO High Bay Light Fixture LED 170 LPW

  • High Performance – Up to 170 lumens per watt
  • Energy Efficiency – 1000W MH Equivalent by ufo led high bay light 200w. In extreme contrast to conventional metal-halides, led high bay lights can bring in 88% of energy savings.
  • Power Option – 100W, 150W, 200W
  • Long Lifetime – L70>60,000 hrs.  At 8 hours daily use, Lightide’ high bay led lights are rated to last 17 years.
  • Multi-Installation – Chain Pendant,  conduit mount
  • 10-year limited Warranty
  • Listings -ETL/cETL, CE/RoHs, CB/SAA, IP66 Rated.
Datasheet
Inquiry To Us

Features & Benefits

high-lumen-output-efficacy

Premium Chip

170 lumens per watt of ufo led high bays

DLC vandal-proof-fixture

Vandal -Resistance

High-duty die-casting aluminum alloy case and shatter-proof of cover.

beam-angle-fixture

Unique Optical Design

UV-resistance of optical design for beam angles mid 60°, wide 90°, and flat 110 °

Dimmable-led-garage lights_wallpack_high-bay-light fixture

Dimmable Available

Compatible with Lutron 1-10vdc dimmer and other dimmers. The dimming program can be custom-designed.

heat-sink-design-system-of-led-post light_outdoor lights

Heat Dissipation

Excellent heat dissipation design to keep long-term operation.

DLC IP65_66-_high bayLight-fixture_outdoor lights

IP66 Rated

Waterproof IP66 rated for wet location led high bays.

meanwell-driver-for-linear-led-high-bay-lighting_outdoor flood lights led

Meanwell Driver

Quality Taiwan Meanwell driver is used. 480 volt led high bay lights available.

10-years-warranty-for-Lightide-LED-HIGH-BAY-SHOP-Lights

10-year Waranty

Coming with Meanwell driver, it offers a 10-year limited warranty. Contact us for more detail.

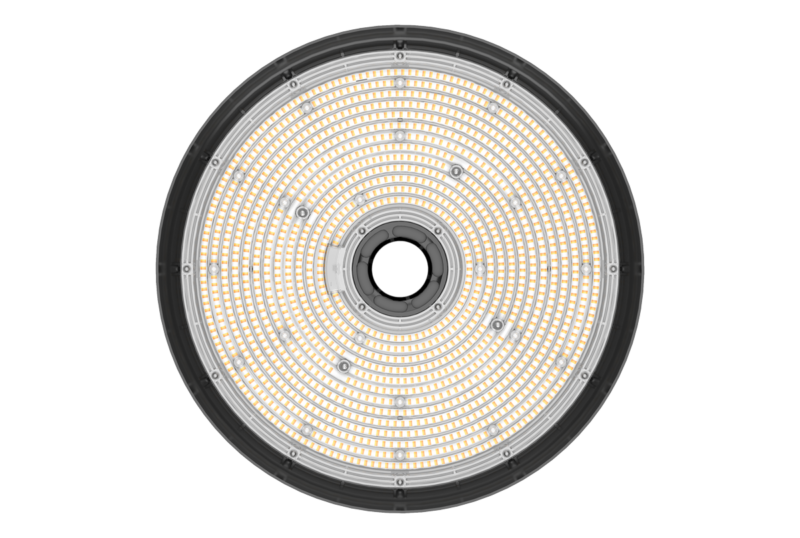

UFO High Bay Light delivers high efficient with 170 lumens per watt. It can replace 600W~1000W HPS lamp for industrial and commercial lighting. It is an easy solution to area lighting needs in industrial and commercial applications.

Super Brightness

UFO LED High Bay Light fixtures feature high-performance 60, 90 and 110-deg. optical design and delivers clear, brighter light when compared to traditional high bay lighting.

High color rendering level 85 and waterproof IP66 rating design perfect for retail stores, shop, wholesale warehouses, grocery chains, malls, showrooms, and plants.

Easy Installation & Maintenance

Hook mount is an easy and fast installation and Easy wiring.  Recommended mounting height 20 feet to 35 feet.

Standard Cover kit available on the housing is easy to clean the fixture during maintenance.

Others

Get HERE for NFS-IP69K LED High Bay Light Fixture or LED Food Processing Light.

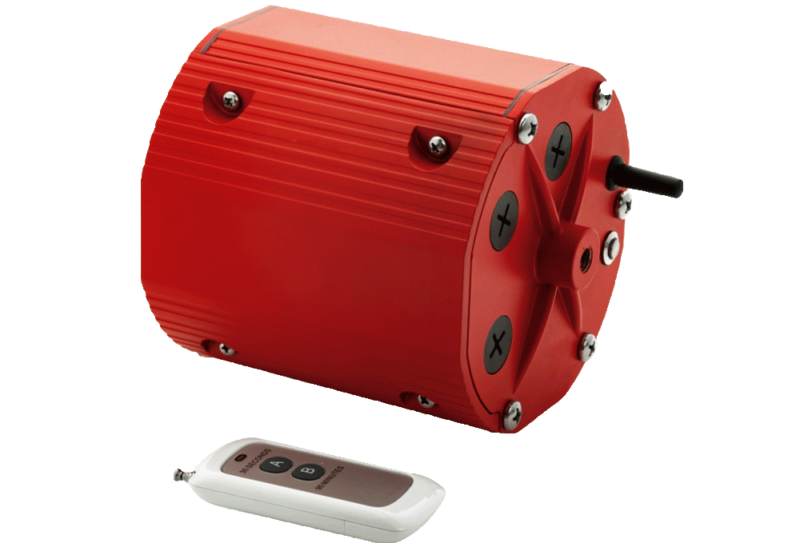

Click HERE for UFO led high bay emergency lighting fixture 100-150-200-240 watts.

Order Information

 Sample:  LT-UBA320C-150W-HV-50K-PC-W

LT-UBA-320C-150W-HV-50K-PC-W


Finish: Blanket=Black, W=White

Accessory: MS=Motion Sensor, PC=Photocell
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Std.=100-277vac, HV=200-480vac
Power: 100W, 150W, 200W
Size Code: 280C, 320C, 400C
Desc: LED UFO High Bay Lights



Specification

Model#RatingLumen EfficacyEqui.Voltage OptionCCT OptionDimension

LT-UBA280C-100W

100W

170 LPW

400 watt MH

100-277VAC/200-480VAC2700-6500Kø290x178mm

LT-UBA320C-150W

150W

170 LPW

600 watts MH

100-277VAC/200-480VAC2700-6500K

ø340x185mm

LT-UBA400C-200W

200W

170 LPW

10000W MH

100-277VAC/200-480VAC2700-6500K

ø364x192mm



Compliant Standards.

CertificateETL/cETL Wet Location, CE, RoHs, SAA, CB
EMC/FCC/IC StandardEN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety StanardUL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1
NO.DescriptionDocumentVersionDate
1Lightide LED UFO High Bay Lights (Type C) Datasheet
Download
A12019-12
2Lightide LED UFO High Bay Lights (Type C) sales sheetDownloadA2019-12
3IES File UFO High Bay LED Lights  (Type C)DownloadA2019-12
