Project Description

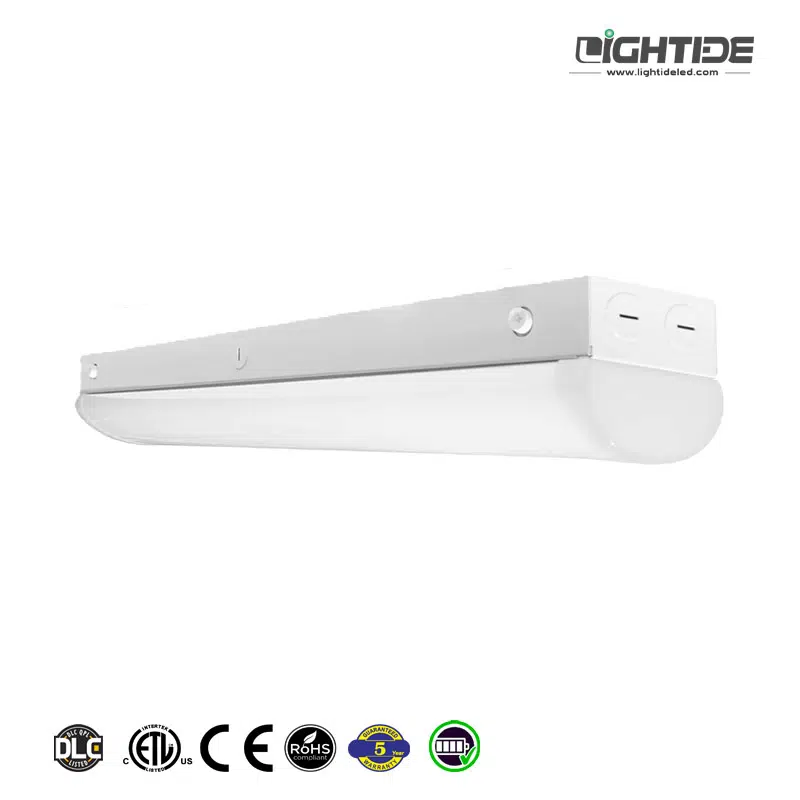

Linear LED Shop Light Fixtures for Garage Lighting
(LT-LSA series)
- Excellent Performance – Full fixture outputs up to 150 lumens per watt.
- Energy Efficiency – In extreme contrast to conventional metal-halides, these led shop lights can bring in 80% of energy savings.
- Long Lifetime – At 8 hours daily use, garage lighting LED shop lights are rated to last 17 years.
- 5-year Unlimited Warranty – No-compromise warranty covered.
- Listings – DLC , UL/cUL, CE & RoHS.
Features & Benefits
Glare-free
Strip cover finish. Glare-free
Varisized Option 4' & 8'
There are 4′ and 8′ length with frostedor clear strip finish cover for option.
High Efficacy
Output up to 130 lumens per watt for frosted cover and 150 lumens per watt for clear cover.
Std. 1-10vdc Dim
Compatible with Lutron 1-10vdc dimmer and other dimmers. Contact us for more.
Easy Installation
Surface mount and pendant mount kits are available for many installation way.
Motion Sensor
With insufficient ambient light, the motion sensor switches on the lamp when motion is detected.
5-Year Warranty
Ideally lasts 10 times longer than traditional fluorescent tube light. Protected with 5 Year unlimited warranty, your satisfaction is 100% guaranteed.
DLC QPL
Many utilities offer lucrative rebates for Lightide’ DLC QPL lights LED. It is able to accelerate the payback.
Commercial LED shop lights are integrated LED tubes and fixtures for easy installation. Moreover, DLC qualified best LED shop lights are standard 0-10vdc dimming. Most importantly, 4-8 foot led shop light fixtures can replace traditional 2×40 watts or 2×56 watts fluorescent fixtures.
In addition, these led shop lights are designed with milky or clear cover for warehouse, plant, garage, and office application.
LED Shop Light Fixtures Order Information
Sample: LT-LSA04-40W-50K-PC
| LT- | LS | -A | -04 | -40W | – | -50K | -MS | -F |
|
| Cover Option: F=Frosty, C=Clear | |||||||||
| Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Backup | |||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | |||||||||
| Input Voltage: Blanket.=100-277vac | |||||||||
| Power code: 30=30W, 40=40W, 60=60W | |||||||||
| Length Code: 02=2′, 04=4′, 08=8′ | |||||||||
| Code: A, B, C, D, | |||||||||
| Desc: LED Shop Lights_Garage Lights | |||||||||
LED Shop Light Fixtures Datasheet
| Model# | Rating | Lumen Output | Equivalent | Length | Voltage Option | CCT Option |
| LT-LSA04-30W | 30W | 4500 lm | 2x36w CFL | 4′ | 100-277VAC | 3000k, 4000k, 5000k |
| LT-LSA04-40W | 40W | 6000 lm | 2X40W CFL | 4′ | 100-277VAC | 3000k, 4000k, 5000k |
| LT-LSA08-60W | 60W | 9000 lm | 2x56W CFL | 8′ | 100-277VAC | 3000k, 4000k, 5000k |
LED Shop Light Fixtures Standards
| Certificate | DLC, UL/cUL dry Location |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Download | Version | Date |
| 1 | Lightide linear led strip low bay & shop lights sales sheet | A | 2019 | |
| 2 | Lightide linear led strip low bay & shop lights datasheet | A | 2019 |
