UFO LED Lights | High Bay Industrail Light Fixture 100W-240W

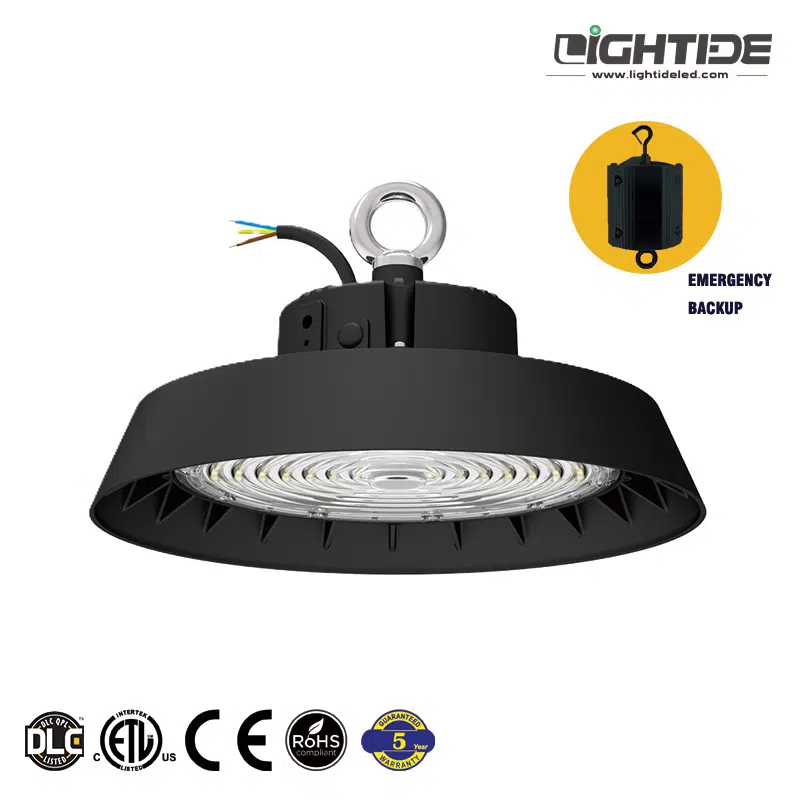

UFO LED High Bay Light Fixtures (III-Gen)

UFO led high bay lights are designed with a high-duty die-casting process to get better heat dissipation. In addition, UL Approved Flicker-free also is available for industrial lights. Moreover, IP66 rated high bay lights can deliver efficiently, uniform, high lumen output for commercial, industrial, retail, and plant, etc.

High Efficacy – 140 lumens per watt
Flicker-free
5-year Warranty
Listings -DLC, ETL/cETL, CE/RoHS. IP66 rated.
White Finish ( Black available)
Emergency Battery Backup is available

Datasheet

Inquiry To Us

Features & Benefits

140 LM/W

High-performance 140 LPW of ufo LED high bay lights fixture.

Rugged Case

The case is made by the cold precision forging process. It is stronger than an equivalent cast or machined part.

Motion Sensor

With insufficient ambient light, the motion sensor switches on the ufo led lights when motion is detected.

Emergency Battery

UL924 & CE Recognized Emergency Battery Backup is available.

Unique Optical Design

UV-resistance PMMA optical design for beam angles 60°, 90°, and flat 110 °

IP66 Rated

Waterproof IP66 rated ufo led lights are suitabel for the wet and damp location.

ETL/cETL/CE Listed

ETL/cETL listed with standard UL1598, CAN/CSA -C.22.2 NO. 250.0. CE certified.

5-year Warranty

5 years warranty. Easy and fast replacement is offered if any quality issue.

Overview

UFO LED Lights Die-casting Housing

Firstly, greater material strength in casting aluminum parts due to the total absence of porosity. So it can get better heat dissipation efficiency.
Secondly, the new ‘Smaller Size’ is the latest in LED heat sink dissipation technology. That is to say, smaller, longer-lasting, and more efficient. Only 11 inches (290mm) of the diameter of the housing design is more rugged without sacrificing any performance.
Finally, the powder-coating finish is especially fit for rust and corrosion-proof for retail stores, wholesale warehouses, grocery chains, malls, showrooms, and plants.

3 Kinds of Mounting Ways

Moreover, adapt your UFO high bays to any ceiling and application using these mounting methods, for examples,

Conduit Mount
Hook Mount. A mounting ring is attached in the standard package. This is to say, it enables easy snap hook attachment to existing layouts or supported structural mounts.
Yoke Mount. The UFO LED high bay lights can be yoke mounted. Because it is using the U shape of the bracket to enable multi-directional lighting from any ceiling or surface-mounted location.

UFO led high bay light with surface mounted kit

Other Styles of LED High Bay

In addition, NFS-IP69K UFO LED High Bay Light Fixture | LED Food Processing Light.

Click Here for emergency led High Bay Lights 100~240 watts.

Specification

LED High Bay Order Information

Sample: LT-UBA320A-150W-HV-50K-EM/PC-W

LT-	UBA	-320A	-150W	-HV	-50K	-EM/PC	-B
							Finish: Blanket=White, B=Black
						Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit
					CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
				Voltage: Std.=100-277vac, HV=200-480vac, EV=200-240vac
			Power: 100W, 150W, 200W, 240W
		Size Code: 280A, 320A, 400A
	Desc: LED UFO High Bay Lights

LED High Bay Specification

Model#	Rating	Lumen Efficacy	Equiv.	Voltage Option	CCT Option	Dimension
LT-UBA280A-100W	100W	140 LPW	400W MH	100-277VAC /200-480VAC 200-240vac	2700-6500K	ø260x340mm
LT-UBA320A-150W	150W	140 LPW	600W MH	100-277VAC /200-480VAC 200-240vac	2700-6500K	ø260x340mm
LT-UBA400A-200W	200W	140 LPW	600~10000W MH	100-277VAC /200-480VAC 200-240vac	2700-6500K	ø290x360mm
LT-UBA400A-240W	240W	140 LPW	10000W MH	100-277VAC /200-480VAC 200-240vac	2700-6500K	ø290x360mm

LED High Bay Standards

Certificate	ETL/cETL Wet Location, CE, RoHs
EMC/FCC/IC Standard	EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard	UL924, UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1

Download

NO.	Description	Document	Version	Date
1	Lightide UFO LED High Bay (Type A) Datasheet	Download	A1	2020-01
