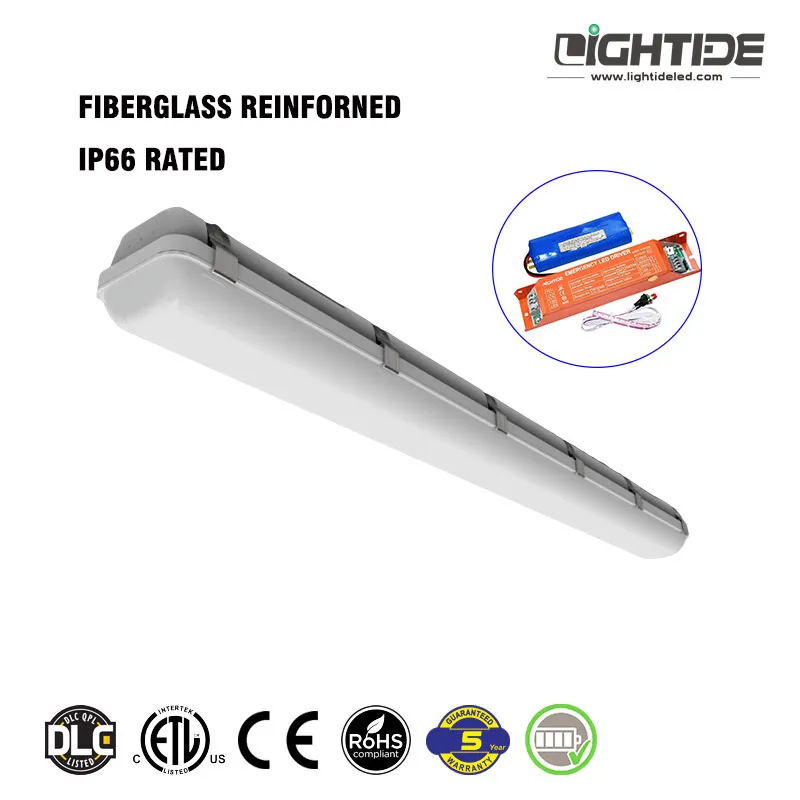

4ft LED Shop Light Linear W/ CCT & Wattage Selectable

Vapor Tight | J-Box Install | Emergency Backup

To get the most out of 4ft LED shop light, you may consider wattage & CCT & wattage selectable style, which has slide switches inside. Besides this, these fixtures are designed for either suspension or surface mounting with a J-box bracket.  They are ideal for workshops, utility rooms, garages, and other commercial applications.

  • Outputs up to 130 lumens per watt (Frosty).
  • Selectable Wattage 32W-40W-50W or 40W-50W-60W in one fixture.
  • Selectable CCT 3000K-4000K-5000K
  • 5-year Warranty –  No-compromise warranty covered.
  • Standard J-Box Mount
  • Listings: ETL/cETL, CE/ROHS
  • Bi-level Motion Sensor with ON/OFF and 3-step dimming.
  • Emergency Backup is available.



  etl-ce-rohs-warranty

Datasheet
Inquiry To Us

Features & Benefits

Power & CCT Selectable On-site

The 4 ft shop light is allowed 3 different wattage and CCT settings with two simple slide switches, such as 32W-40W-50W, 3000K-4000K-5000K.

This flexible choice capability allows for a cost-effective method to reduce stocking inventory by 88% (1 SKU instead of 9).

power-&-cct-selectable-switch
wide beam angle of 4ft led shop lights

Wide Beam Angle

These 4ft LED shop lights have unique beam angles compared to other models. They not only have wide 165 degrees angles, but they provide uniform light output design with a frosty diffuser.

Emergency Backup

The battery backup systems inside shop lights, which power illumination during power outages, are approved by UL924 and provide at least 90 minutes of emergency operation.

LED-emergency-battery-driver
J-BOX Mount LED garage lights

Junction-Box Mount Kit

Accessory mounting kits available for junction box, Quick-mount, surface, stainless steel spring clips supplied.

Order Information | 4ft LED Shop Light

 Sample:  LT-VTA4-40-CPT-MS-EM

LT- VT -A -4 -40CP -T -MS/EM
              Blank=Frosty
Accessory: MS=Motion Sensor,  EM=Emergency Backup
 T: CCT Tunable Range from 3000K-4000K-5000K,  30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Power  Code: 40=40W, 40CP =range from 32W-40W- 50W, 50CP= 40W-50W-60W
Length  Code:  4=4ft
 Code: A, B, C, D
Desc: Vapor Tight rated led high bay light



Specification | 4ft LED Shop Light

Model# Rating Lumen Output Equivalent Cover  Length Voltage  CCT Option
LT-VTA440 40W 130 LPW 2X36W CFL Frost 4′ 100-277VAC

3000K/4000K/5000K

LT-VTA440CPT

Tunable Range

32W-40W-50W

130 LPW 2X36W CFL Frost 4′ 120-347VAC

Tunable Range

3000K-4000K-5000K

LT-VTA450CP

Tunable Range

 40W-50W-60W

130 LPW 2X56W CFL Frost 4′ 100-277VAC 3000K/4000K/5000K



Compliant Standards | 4ft LED Shop Light

Certificate ETL/cETL Wet Location, CE/RoHS
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924
NO. Description Document Version Date
1 Datasheet
Download
A1 2022-01
2 Sales sheet
Download
A 2020-08
