Linkable LED Shop Lights | Utility Garage Lights 20W-80W
Linkable led shop lights feature aluminum case and shatterproof cover to replace traditional fluorescent fixtures, typically used in garages, shop, and workshops. In addition, this shop high bay light can be linkable up to 9 additional fixtures with built-in end-to-end connectors.
- Excellent Performance – Outputs up to 160 lumens per watt.
- Energy Efficiency – In extreme contrast to conventional fluorescent tubes, linkable led light can bring in 80% of energy savings.
- Linkable Directly with end-to-end connectors up to 9 lights together.
- Long Lifetime – At 8 hours daily use, linkable led high bay lights are rated to last 17 years.
- 5-year Warranty – No-compromise warranty covered.
- Listings: DLC Premium, ETL/cETL, CE/ROHS
- Emergency Battery Backup is available.
Features & Benefits
Shatter Proof
Shatter-proof housing ensures high safe-standard impacting rated to IK10.
High Efficacy 160 lm/W
Up to 160 lumens per watt lumen efficiency output.
Dimmable Available
Compatible with Lutron 1-10vdc dimmer and other dimmers.
Motion Sensor
With insufficient ambient light, the sensor switches on the lamp when motion is detected.

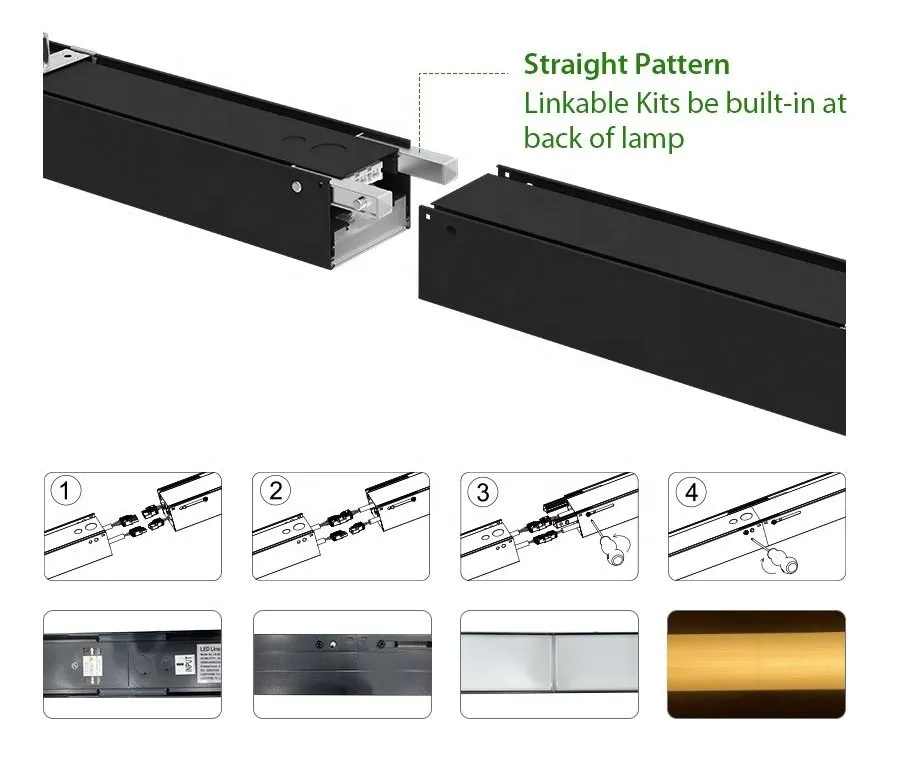

Integrated with connector for quick wiring linkable connection without tools.
IP65-Rated
Waterproof IP65 -rated for wet/damp location.
5-Year Warranty
Complete fixture offers 5 years warranty, including the case, led chip, driver and cable.
DLC Premium
Many utilities offer lucrative rebates for DLC fixtures. It is able to accelerate the payback.
Linkable LED Shop LightsShatterproof Cover OptionsWith high-performance of SMD LEDs, linkable led garage lights output up to 160 lumens per watt with clear covers. The frosty cover also is available. |  |

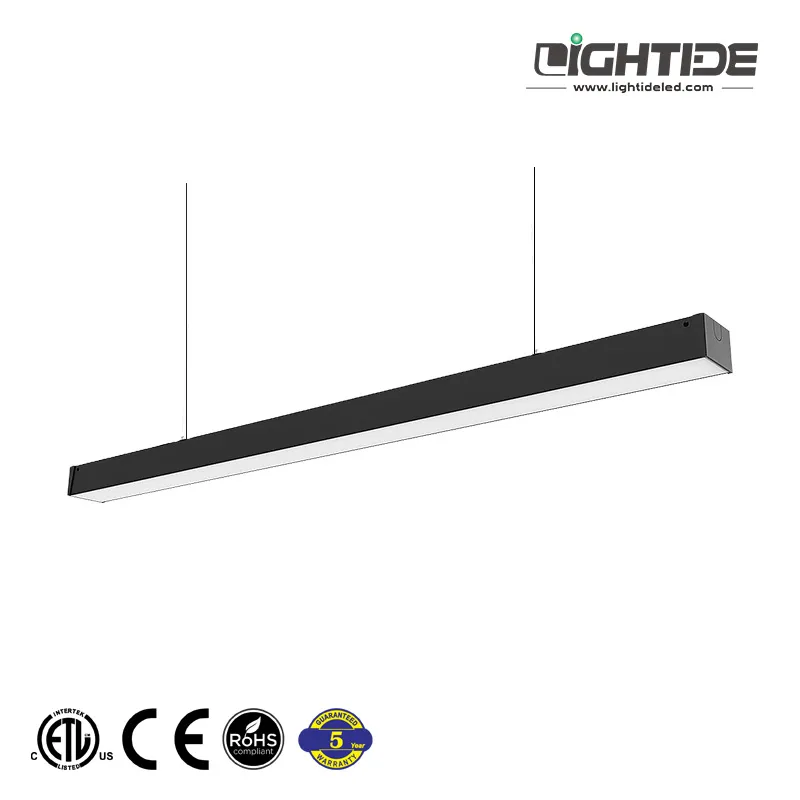

Linkable LED Shop LightsMounting OptionsThe best linear LED strip lights offer two mounting methods of surface mounting & suspended mounting to fulfill your high bay lighting requirements. Thus these industrial LED high bay lights are widely used for interior and exterior wet locations, such as car wash operations, airports, tunnels, maintenance areas, parking garages, and stairwells. |  |
Linkable LED Shop Lights Order Information
Sample: LT-TPL4-40-EV-50K-MS-F
| LT- | TP | -L | -4 | -40 | -EV | -50K | -MS | -F | |
| Cover Option: F=Frosty, C=Clear | |||||||||
| Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Backup | |||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | |||||||||
| Input Voltage: Std.=100-277vac, HV=200-480VAC, EV=200-240VAC | |||||||||
| Power code: 20=20W, 40=40W, 50-50W, 60=60W, 80=80W | |||||||||
| Length Code: 2=2′, 4=4′, 5=5 | |||||||||
| Code: A, B, C, D, L | |||||||||
| Desc: Linkable LED Shop Lights_Garage Lights | |||||||||
Specification
| Model# | Rating | Lumen Output | Equivalent | Cover | Length | Voltage | CCT Option |
LT-TPL220 | 20W | 3200 lm | 2x16w CFL | Frosty/Clear | 2′ | 100-277VAC/200-480VAC 220-240VAC | 2700-6500K |
LT-TPL440 | 40W | 6400 lm | 2X36W CFL | Frosty/Clear | 4′ | 100-277VAC/200-480VAC 220-240VAC | 2700-6500K |
LT-TPL460 | 60W | 9600 lm | 2X56W CFL | Frosty/Clear | 4′ | 100-277VAC/200-480VAC 220-240VAC | 2700-6500K |
LT-TPL560 | 60W | 9600 lm | 2X58W CFL | Frosty/Clear | 5′ | 100-277VAC/200-480VAC 220-240VAC | 2700-6500K |
Linkable LED Shop Lights Standards
| Certificate | DLC Premium, ETL/cETL Wet Location |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1, UL924 |
| NO. | Description | Document | Version | Date |
| 1 | Lightide TPL series led shop lights datasheet | A | 2020-02 | |
| 2 | Lightide TPL series led shop lights sales sheet | A | 2020-02 |
