High Bay LED Light Fixtures (3rd-Gen)
The Ultimate All-in-One Solution: High-Performance Linear High Bay LED light
Discover the ultimate lighting solution with Linear High Bay LED Light fixtures, designed to meet diverse needs and deliver exceptional performance. Featuring 3-CCT, Power, and Beam Angle Selectable options, these lights provide unparalleled flexibility to adapt to various environments. With advanced APP/Bluetooth Control, managing your lighting setup has never been easier.
Engineered with a high-duty die-casting aluminum housing, these lights ensure durability and efficient heat dissipation. Equipped with 6KV surge protection, they safeguard against electrical surges for long-lasting reliability. An optional Emergency Backup feature adds an extra layer of security, ensuring uninterrupted illumination when it matters most.
For added safety and convenience, a wire guard is included, making these lights ideal for industrial and commercial applications. Backed by a 5-year warranty, our LED Linear High Bay Lights offer peace of mind and superior performance. Illuminate your space with confidence and efficiency today!
- Excellent Performance – Up to 140 lumens per watt.Â
- Selectable CCT & Wattage & Beam Angle
- APP/Bluetooth Control
- Zhaga Sensor
- High-duty die-casting aluminum alloy housing
- Multi-Installation – Chain Pendant, Surface Mount, Thread Rod 1/2″ NPT
- 6KV Surge protection
- 5 years warranty Â
- Listings -ETL/cETL, CE/RoHS
- Emergency battery backup is available.

Order Information | High Bay LED Shop Light
Sample:Â LT-LBA-150-H-40K-C-MS/EM-3H
| LT- | LBA | -150 | -HV | -50K | C | -MS/EM | -2H |
| Â | Â | Â | Â | Â | Â | Â | Duration (EM):Â STD=90 min. 2H=120 min. 3H=180 min. |
| Accessory: MS=Motion Sensor, EM=Emergency, PC=Photocell, DM=1-10VDC, AP=APP/Bluetooth control | |||||||
| C= ADJ. CCT & Wattage& Angle | |||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K, 3CT=ADJ. 30K-40K-50K | |||||||
| Voltage: H=200-480VAC, M=120-347VAC, Blank=100-277VAC, | |||||||
| Power: 150W, 200W, 300W | |||||||
| Series: Linear LED High Bay Lights | |||||||
Â
Specification | High Bay LED Shop LightÂ
| Model# | Rating | Lumen Output | Equivalent | Voltage Option | CCT Option | Beam Angle |
|---|---|---|---|---|---|---|
| LT-LBA150 | 150W | 21,ooo lm | 400W MH |
|
2700K-6500K | 120o, 65ox95o, 45ox100o, 90ox90o |
| LT-LBA150-C | 80w-120w-150w selectable | 21,000 lm | 600W MH | ADJ. 30K-40K-50K | ADJ. 65ox95o– 45ox100o-90ox90o | |
| LT-LBA200 | 220w | 28,000 lm | 600W MH | 2700K-6500K | 120o, 65ox95o, 45ox100o, 90ox90o | |
| LT-LBA200-C | 140-180-220w selectable | 28,000 lm | 600W MH | ADJ. 30K-40K-50K | ADJ. 65ox95o– 45ox100o-90ox90o | |
| LT-LBA300 | 300w | 42,000 lm | 1000W MH | 2700K-6500K | 120o, 65ox95o, 45ox100o, 90ox90o | |
| LT-LBA300-C | 200w-240w-300w selectable | 42,000 lm | 1000W MH | ADJ. 30K-40K-50K | ADJ. 65ox95o– 45ox100o-90ox90o |
Â
Compliant Standards | High Bay LED Shop Lights
| Certificate | ETL/cETL, CE & RoHS |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Standard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | File | Version | Date |
|---|---|---|---|---|
| 1 | Sales Catalog | A | 2026 | |
| 1 | Datasheet | V1 | 2026 |
Feature & Benefit
Tired of stocking ten different fixtures for ten different jobs? Stop compromising and start customizing. Our latest Linear High Bay LED light is the most versatile industrial fixture on the market, designed to adapt to any environment—from high-clearance warehouses to precision manufacturing floors.
These aren’t just lights, they’re a productivity powerhouse.
If you’re looking for a top-quality lighting solution for your shop, look no further than linear high bay LED light fixtures. With superior brightness, emergency backup, and slim design, they’re the perfect choice for any shop owner.
The Power of “Selectability”

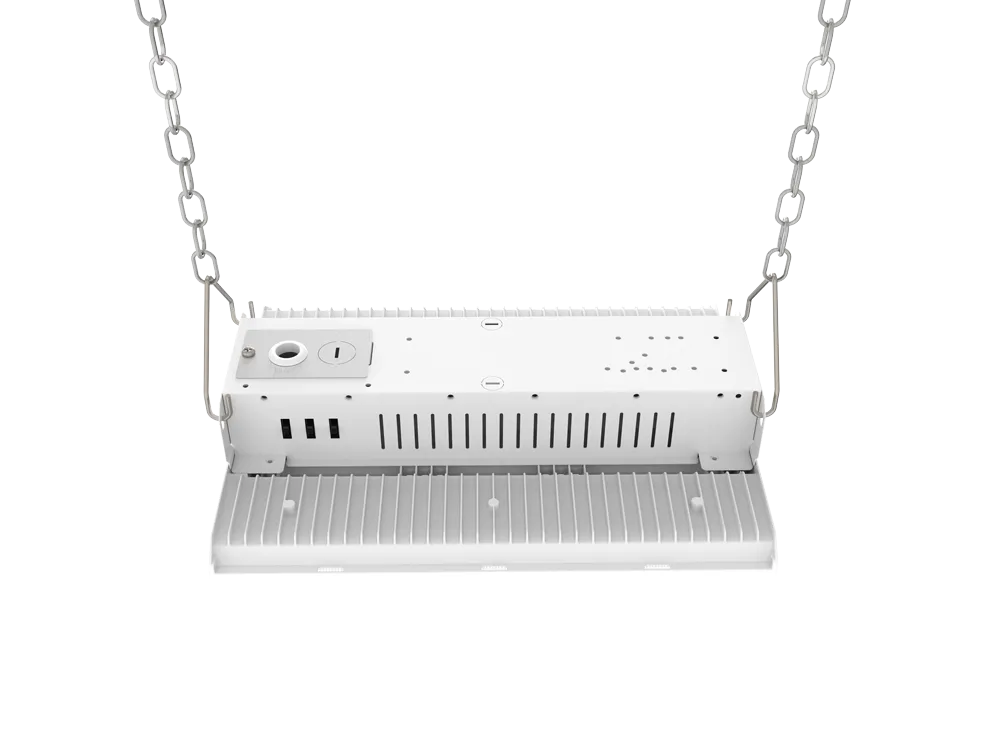

Selectable Wattage, CCT and Beam Angle
Why settle for one setting when you can have them all? This fixture puts total control in the hands of the installer, reducing SKU counts and ensuring the perfect light every time:
-
3-CCT Selectable: Switch between 30K-40K-50K to match the atmosphere of your space.
-
Power Selectable: Adjust the wattage on-site to find the ideal balance between brightness and energy savings.
-
Beam Angle Selectable: Tailor the light distribution (65ox95o, 45ox100o, 90ox90o) to perfectly illuminate high-racking aisles or open work zones.
Enhanced Protection
6KV Surge Protection
Electrical surges can damage sensitive equipment and lead to costly repairs or replacements. That’s why high bay LED light fixtures are equipped with 6KV surge protection, safeguarding your investment against unexpected power fluctuations. This feature ensures uninterrupted performance and peace of mind, even in areas prone to voltage spikes.
Safety First
Emergency Backup Option
Never be caught in the dark. These high bay LED garage lights come with an optional emergency backup system, ensuring continued illumination during power outages, keeping your workspace safe and operational.

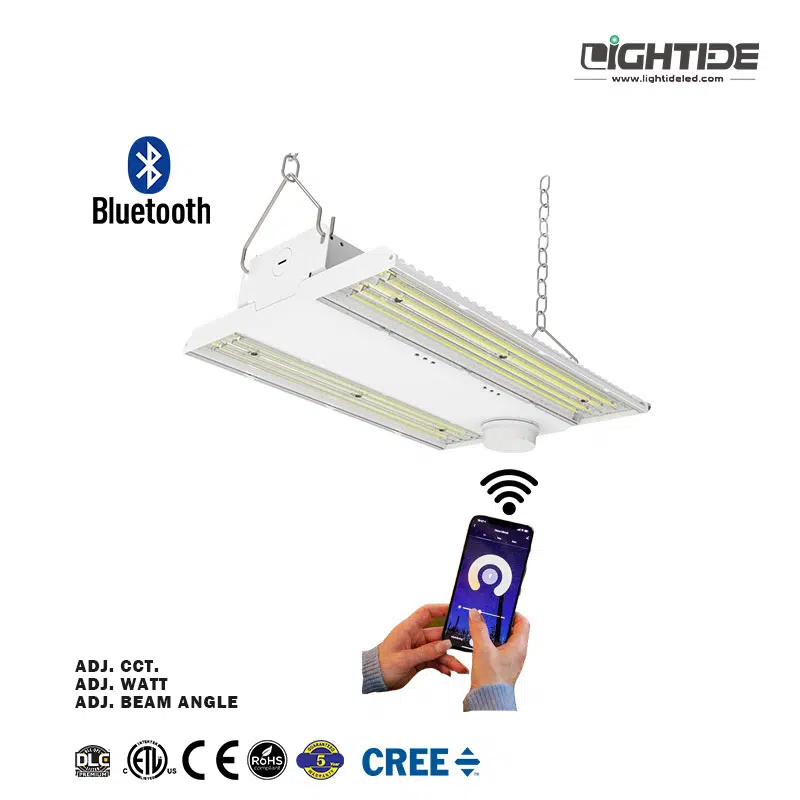

Intelligence at Your Fingertips
Smart Control
Forget complex wiring and manual dimmers. With integrated APP/Bluetooth Control, you can manage your entire facility from your smartphone.
-
Create lighting zones and groups.
-
Set automated schedules.
-
Dim fixtures instantly to maximize energy efficiency—all without ever pulling out a ladder.
