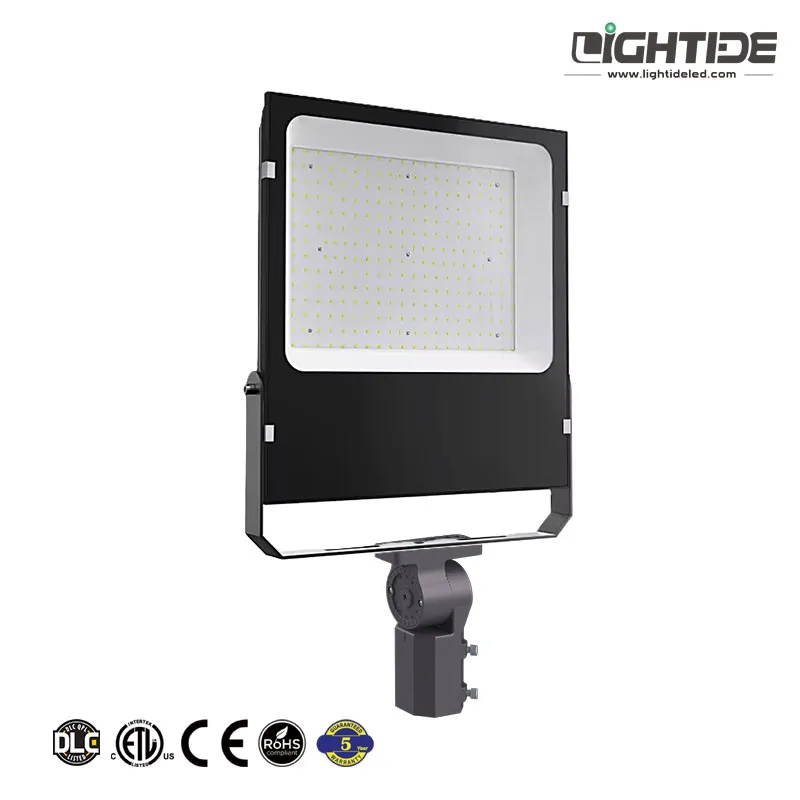

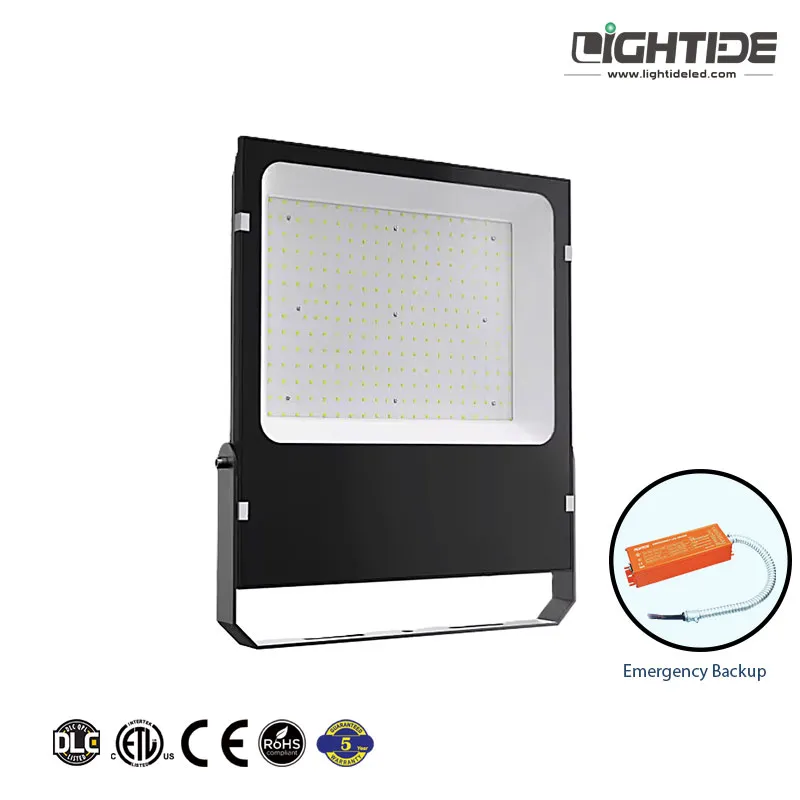

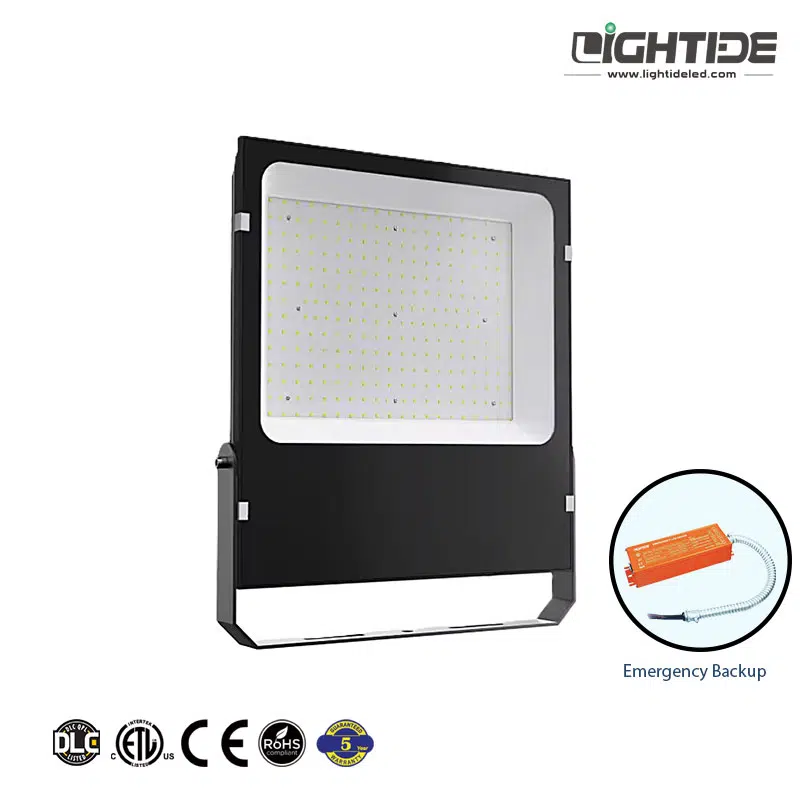

Outdoor High Mast LED Floodlights Ultra-Slim Style
Outdoor LED floodlight fixtures are the best way to illuminate large indoor or outdoor areas. In addition, led flood lights include various beam angles – typically in the range of 60º to 120º. Most importantly, these led flood lights also have designed light distribution type T2 and T3 for the parking lot or square lighting.

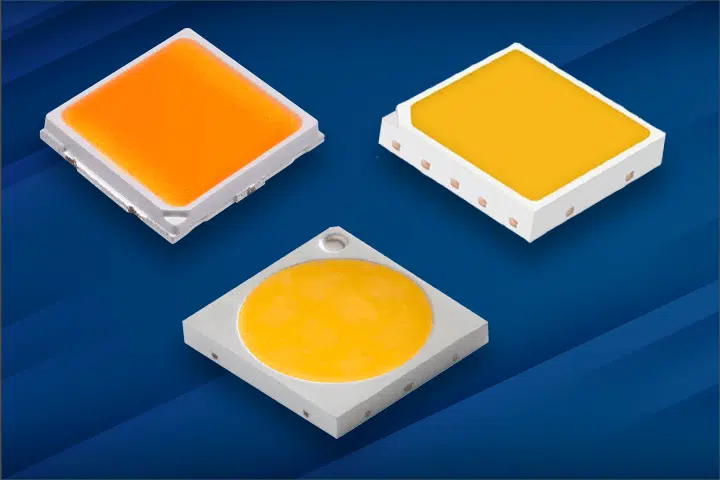

- Excellent Performance – 130 lumens per watt.
- Ultra-Slim Profile
- Various Distributions – 30o/60o/90o/120o/T2/T3
- Finish- Black or White for options
- 5-year Unlimited Warranty
- Listings– ETL/cETL, CE/RoHS
- A motion sensor or Photocell is available.
Features & Benefits
Rugged Metal
High-duty die-casting aluminum alloy case. Powder-coated finish for rust and corrosion proof.
Ultra-Slim Profile
Slim profile design up to 2.1″ height. Save more package size and easy installation.
Heat Dissipation System
Unique fin shape of heat sink dissipation design to help more heat from leds to dissipate quickly.
Photocell Available
The daylight sensor (photocell) is available for switching on dusk and off at dawn automatically.
Various Distribution
Many beam angles of optical design as 30°, 60°, 90°, 120°, and T2 /T3 for options
Dimmable Available
Compatible with Lutron 1-10vdc dimmer and other dimmers. Contact us for more.
5-Year Warranty
The complete fixture offers 5~10 years warranty, including the case, led chip, driver and cable.
ETL/CE Certificate
ETL/cETL standard UL1598, CAN/CSA -C.22.2 NO. 250.0. CE certified.
Commercial LED flood lights feature a slim profile with a black or white powder-coating finish, which assures corrosion resistance and long-lasting aesthetics. Light efficiency up to 130 lumens per watt. Also, 1-10VDC dimmable and occupancy sensors are available.
ETL and cETL listed outdoor floodlight led offers 5 years warranty. With IP Ratings IP65, these led high mast flood lights are available to withstand even severe weather conditions. The unique lens designs that deliver varieties of beam control for road lighting, warehouse, building, road and hotel lighting, etc.
LED Floodlight Order Information
Sample: LT-FLXW100W-HV-50K-PC-90D-2nd
| LT- | FL | X | W | -100W | -HV | -50K | -PC | -90D |
-2nd |
| Gen: 1st, 2nd, 3rd | |||||||||
|
30D=20o, 60D=60o, 90D=90o, T2, and T3 |
|||||||||
| Accessory: PC=Photocell, DM=1-10VDC, SPD=10KV Surge Protection Device | |||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | |||||||||
| Voltage: HV=200-480VAC, Blanket=100-277vac | |||||||||
| Power: 100W, 150W, 200W, 320W | |||||||||
| D: directional W: washer | |||||||||
| Type Code: A, B, C, D, X | |||||||||
| Flood Light | |||||||||
LED Floodlight Specification
| Model# | Rating | Lumen Output | Equivalent | Voltage Option | CCT Option | Dimmable | |
|
LT-FLXW-100W-2nd |
100W |
13000 lm |
250W MH |
100-277VAC /200-480VAC |
2700-6500K | 1-10vdc dim | |
|
LT-FLXW-150W-2nd |
150W |
19500 lm |
400W MH |
100-277VAC /200-480VAC |
2700-6500K | 1-10vdc dim | |
|
LT-FLXW-200W-2nd |
200W |
26000 lm |
600W MH |
100-277VAC /200-480VAC |
2700-6500K | 1-10vdc dim | |
|
LT-FLXW-320W-2nd |
320W |
38000lm |
1000W MH |
100-277VAC /200-480VAC |
2700-6500K | 1-10vdc dim |
LED Floodlight Compliant standards
| Certificate | ETL/cETL, CE/RoHS |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Document | Version | Date |
| 1 | Lightide High Mast LED FLoodlights Datasheet | A | 2020-08 | |
| 2 | Lightide High Mast LED FLood Lights sales sheet | A | 2020-08 |
