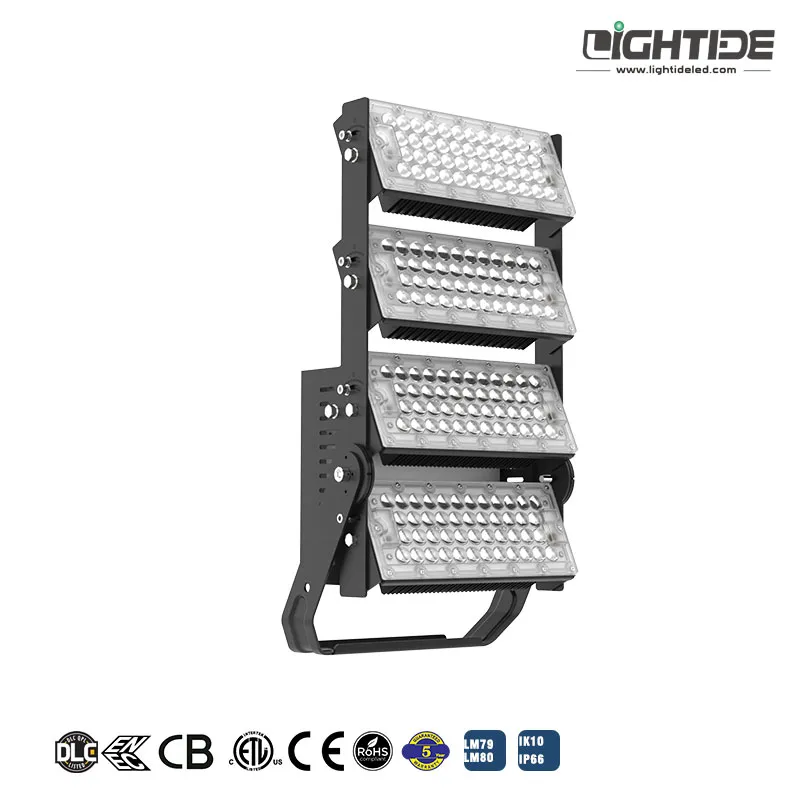

Outdoor LED Stadium Flood Lights | Rotatable Module
(LT-FLCD series)
Outdoor flood lights feature a new & best rotatable led module design. So it can adjust the beam angle easily after installation. Now they are an excellent way to illuminate large indoor or outdoor flood lighting areas.
- Excellent Performance – 140+ lumens per watt.
- Rotatable Modules – Casting direction can be adjustable in the range of -45°~+45°.
- Energy Efficiency – In extreme contrast to conventional metal-halides, this flood light led can bring in 80% of energy savings.
- Long Lifetime – At 8 hours daily use, floodlights LEDs are rated to last 17 years.
- 5-year Unlimited Warranty
- Listings– ETL/cETL, CE & RoHs, IP66 rated
Features & Benefits
High Efficacy 140 LM/W
Philips led chip used. Full fixture 140 lumens per watt output. Replace 400W MH by 100W LED Flood Lights.
Meanwell Driver
Rotatable Module
Casting direction can be adjusted in the range of -45°~+45° as per actual usage.
Heat Dissipation
Unique 1060 pure aluminum fin heat dissipation, air convection design.
Unique Optical Design
Many beam angles of optical design as spotlight 20° and 40°, narrow light 60°, mid light 90°, and wide 140°x100°
IP66 Rated
IP66 Waterproof & Damp Locations. Resists Rust, Corrosion, Cracking and any Electrical Shocks or Fires due to Moisture.
10KV Surge Protection
10KV surge protection device is available for high mast lighting.
5-Year Warranty
The complete fixture offers 5~10 years warranty, including the case, led chip, driver and cable. Contact us for more.
Outdoor stadium flood Lights feature high performance 140 LPW output. Philips SMD LED and Meanwell driver can provide 10 years limited warranty. Many beam angles of PMMA lens optical designs that deliver maximum beam control for outdoor tunnel lights, stadium, square, road lighting, warehouse, building, and outdoor arena lights.
Best Outdoor Flood Lights Order Information
Sample: LT-FLCD-1000W-HV-50K-PC-90D
| LT- | FL | C | D | -1000W | -HV | -50K | -PC | -90D |
|
20D=20o, 40D=40o , 60D=60o, 90D=90o, ST=140° X100o |
||||||||
| Accessory: MS=Motion Sensor, PC=Photocell, DM=1-10VDC, SPD=10KV Surge Protection Device | ||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | ||||||||
| Voltage: HV=200-480VAC, Blanket=100-277vac | ||||||||
| Power: 120W, 240W, 360W, 480W, 720W, 960W, 1200W, 1500W | ||||||||
| D: directional | ||||||||
| Type Code: A, B, C, D | ||||||||
| Flood Light | ||||||||
Best Outdoor Flood Lights Specification
| Model# | Rating | Lumen Output | Equiv. | Voltage Option | CCT Option |
|
LT-FLCD-120W |
120W |
16000-18000 lm |
400W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-240W |
240W |
32000-38000 lm |
600-1000W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-360W |
360W |
48000-57000 lm |
1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-480W |
480W |
64000-76000 lm |
1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-600W |
600W |
96000-115000 lm |
1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-720W |
720W |
115000 lm |
1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-960W |
960W |
153000 lm |
2x1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-1200W |
1200W |
192000 lm |
2x1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
|
LT-FLCD-1500W |
1500W |
240000 lm |
2x1500W MH |
100-277VAC / 200-480VAC |
2700-6500K |
Best Outdoor Flood Lights Compliant Standards
| Certificate | ETL/cETL, CE/ROHS |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Document | Version | Date |
|
1 |
Lightide Rotatable Flood Lighting LED | outdoor tunnel lights datasheet |
 |
A | 2019-02 |
| 2 | Lightide Rotatable Flood Lighting LED | outdoor tunnel lights sales sheet | |
A | 2019-01 |
