LED Commercial Post Top Lights (Gen 4)

The Architectural Standard: Next-Generation LED Commercial Post Top Lights

Upgrade your outdoor lighting with our high‑performance LED Commercial Post Lights, engineered for maximum efficiency, durability, and visual comfort. Designed for pathways, campuses, parks , plazas, and municipal spaces, this versatile post‑top series delivers exceptional illumination with long‑term reliability.

The fixture meets Class I & II ERP standards, ensuring compliance with strict safety and performance regulations. Its IP66 rating guarantees full protection against dust, rain, and harsh outdoor environments, making it ideal for year‑round operation.

For global reliability, the series is ENEC/CB qualified, confirming adherence to international electrical and safety standards. Multiple light distribution options—including Type II, III, IV, and V—ensure precise coverage for a wide range of outdoor applications. Every model is backed by a dependable 5‑year warranty, giving you confidence in long‑term performance.

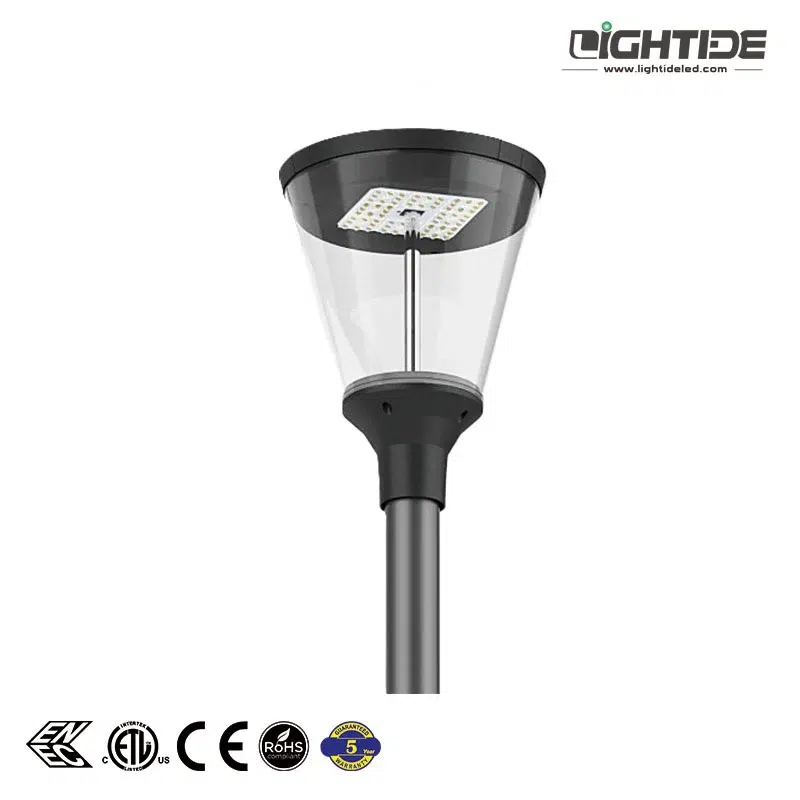

  • Lightide-ENEC-CB-GEN-4-PTA-series-LED-Post-Top-Lights-Post-Street-Lights-30W-150W



  • Adjustable wattage and CCT for flexible on‑site tuning
  • High efficacy 170 LPW for maximum energy savings
  • Durable die‑casting aluminum frame with excellent thermal management
  • Class I & II ERP compliant for safety and efficiency
  • IP66 rated for outdoor weather resistance
  • ENEC/CB qualified for international quality assurance
  • Multiple light distribution options for targeted illumination
  • Reliable 5‑year warranty



enec-cert-darketl-ce-rohs-warranty

Order Information | LED Commercial Post Top Lights

Sample:  LT-PTA50-M-50K-PC-T2M

LT- PTA -50 -M -50K -PC -T2M
            Beam Angle:  120D=120O, T2M/S=Type II, T3M/S=Type III, T4M=Type IV, T5=Type V
Accessory: MS=Motion Sensor, PC=Photocell, DM=1-10VDC dimming, SPD10=10KV SPD
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K, CPT=3000K-4000K-5000K Selectable
Voltage: M=120-340VAC, Blank=120-277vac
Power: 30=30W, 40=40W, 50=50W or Selectable 20W- 30W-40W-50W, 60=60W
Desc: LED Post Top Light



Specification | Commercial Outdoor LED Post Top Lights

Model# Input Voltage Rating Lumen Output Equiv. CCT
LT-PTA30 120-277vac/347vac 30W 5,100 lm  75W MH Single CCT: 3000K, 4000K, or 5000K
LT-PTA40 120-277vac/347vac 40W 6,800 lm  75W MH Single CCT: 3000K, 4000K, or 5000K
LT-PTA50 (CPT) 120-277vac/347vac 50W, 20W-30W-40W–50W Selectable 8,500 lm max. 150W MH Single  CCT, 3000K/4000K/5000K Selectable
LT-PTA60  120-277vac/347vac 60W 10,400 lm 150W MH Single CCT: 3000K, 4000K, or 5000K

Compliant Standards | Commercial Outdoor LED Post Top Lights

Certificate ENEC, CB, ETL/cETL, IP66 rated Wet Location, CE, RoHS
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Standard UL924, UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1
  Document   IES File (140-160 LPW)
1
Product Brochure

2
Sales Sheet

3
Get Specification Now

4
5

    We will answer your email shortly!

    Feature & Benefit

    Engineered for modern outdoor environments, our LED Commercial Post Top Lights deliver a powerful blend of performance, flexibility, and long‑term reliability.

    CCT & Watts Selectable

    This flexible choice capability allows to reduce stocking inventory by 88%.

    Rugged Grade

    High-duty die-casting aluminum alloy housing & Shatter-proof Polycarbonate lens

    Efficacy 170 LPW

    Provide superior energy savings while maintaining uniform, high‑quality light output.

    5-Year Warranty

    Easy and fast replacement is offered if any quality issue. Contact us for more details.

    IP66 All-Weather Rating

    Designed to thrive in the most brutal environments.

    Class I & Class II Insulation

    Offers flexible wiring configurations to align with diverse local grid infrastructure and grounding codes.

    It’s not about services,
    It’s about ‘SOLUTION’!

    We can help you build a lighting solution that is not only awesome to look at, but cost effective as well.

    Lightide LED Post Top street Lights
    efficacy

    Uncompromising Efficacy: A Staggering 170 LPW

    Slash your operational overhead without sacrificing illumination quality. Operating at a market-leading 170 Lumens per Watt (LPW), these post tops deliver ultra-bright, uniform light while pulling a fraction of the energy required by standard LEDs or legacy HID systems. Achieve rapid ROI and maximize utility rebate eligibility effortlessly

    Optimized Optics: Various Light Distributions

    Direct light exactly where it belongs while eliminating wasteful upward light pollution. With multiple optical distribution configurations available (including Type III, Type IV, and Type V equivalents), you can customize the beam spread to perfectly match your site layout—whether you need wide, asymmetric forward-throw for roadways or symmetrical, 360-degree coverage for open parks.

    light distribution pattern of area light
    enec-cert-white

    Certified Global Compliance & Safety

    Navigate complex international electrical codes and strict European regulatory frameworks with a fully vetted electrical platform:

    • 1

      Class I & Class II Insulation: Offers flexible wiring configurations to align with diverse local grid infrastructure and grounding codes.

    • 2

      ERP Compliant: Fully meets the stringent eco-design mandates of the European Union’s Ecodesign (ErP) Directive.

    • 3

      ENEC & CB Qualified: Globally recognized safety and performance certifications ensure the fixture has passed rigorous independent laboratory testing.

    Upgrade Your Infrastructure Today

    Don’t settle for static, inefficient lighting. Choose a post top fixture that adapts to your environment, slashes your energy bills, and stands up to the elements.
