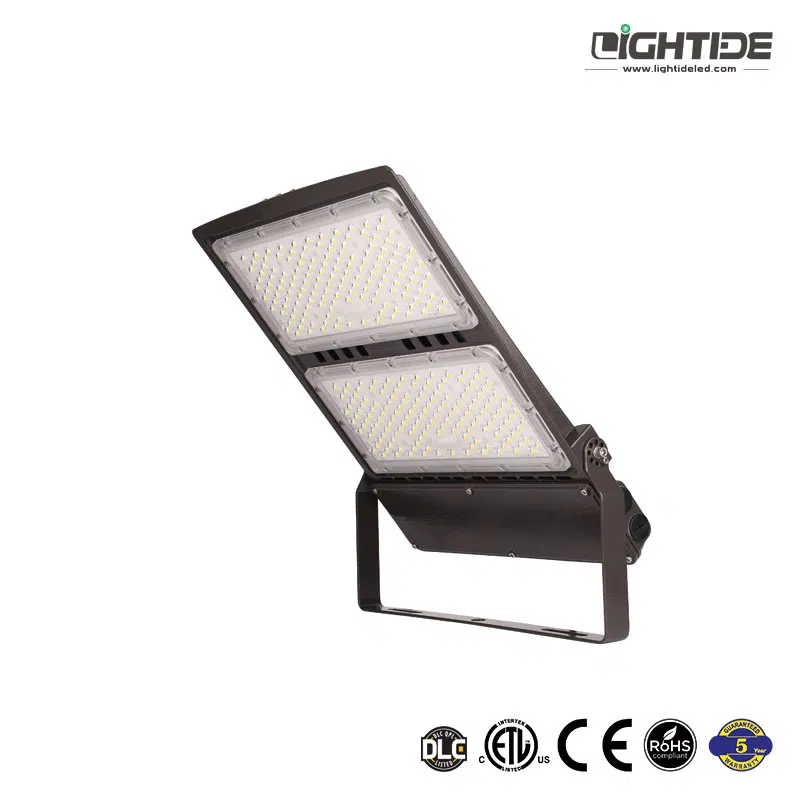

  • Lightide-DLC-QPL-slim-LED-shoebox-parking-lot-lights-300w
  • bullhorn-bracket

G3 LED Parking Lot Lights | Area Lights

140 LPW | 6KV Surge Protection | DLC QPL

Led parking lot lights can get high efficacy of 140 lumens per watt as alternatives to metal halide area lights and street lights. Moreover, commercial LED pole light fixtures feature Type III, Type IV, and Type V distribution that lights up the area. In general, these outdoor led pole lights usually are suitable for parking lots, pathways, sidewalks, street lighting, etc.

  • Excellent Performance –140 lumens per watt.
  • Energy Efficiency 80% above – Replacing up to 1000W MH by 300W LED shoebox area light.
  • Dusk to dawn mode
  • Built-in 6KV surge protection
  • 5-year Warranty
  • Listings: DLC Premium, ETL/cETL, IP66 rated, CE/RoHS.



DLC-PREMIUM-LOGO   etl-ce-rohs-warranty

Datasheet
Inquiry To Us

Features & Benefits

High Efficacy 140 LPW

3rd generation of SBAL series led shoebox pole light fixtures are designed to deliver energy-efficient, uniform lighting in most parking lot structures with typical light pole spacing and mounting heights. LED parking lot area light is integrated with a high-performance LED chip with up to 140 lm/w.  So it can be equivalent to up to 1000w metal halide fixture by 300W LED parking lot lights.

High Efficacy

Surge-Protector-for-led-parking-lot-light-

6KV Surge Protection

Long lifespan L70-54,000 hrs and 6KV surge protection can keep the reliable quality and low-cost maintenance.

Mount Adapter

Four kinds of mount adapters are the standard accessory for pole mount or surface mounts, such as slip fitter for 60mm pole, extension arm for rectangle /round pole, and wall mount.

Accessories-of-DLC led-parking-lot-light-_shoebox
light distribution pattern of parking lot light

3 Light Distributions: Type III,  IV, and  V

The patterns define how light is dispersed from a fixture and are defined by the point at which 50% of the fixture’s luminous intensity is met. You will see these distributions used regularly in outdoor area lighting, floodlighting & roadway lighting, parking lot lighting, etc. The industry has identified 3 main types of light distribution patterns: Type III,  IV, or V light distribution. Click HERE for more.

Read more

Mount Accessories

You can also buy Spoke, Tenon Adaptors, and Bullhorns from us. All are suitable for wooden, metallic, or concrete poles – square or round.

bullhorn-bracket

Order Information | LED Parking Lot Lights

 Sample:  LT-SBAL150C-HV-50K-SF-PC-T5

LT- SBAL -150C -HV -50K -SF -PC -T5
              Distributor:  T3=Type III, T4=Type IV, T5=Type V
Accessory: MS=Motion Sensor, PC=Photocell
Adapter: SF=Slipfitter, AE= Rotatable Arm, EA=Extension Arm, TR=Trunnion
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: HV=200-480VAC, Std.=100-277vac
Power: 060C=60W, 100C=100W, 150C=150W, 200C=200W,  320C=320W
Desc: LED Parking Lot Pole Light



Specification | LED Parking Lot Lights

Model# Rating Lumen Output Equivalent Voltage CCT
LT-SBAL060C 62W 9084 lm 150W-175W MH

100-277VAC

200-480VAC

3000K/4000K/5000K
LT-SBAL100C 100W 14661 lm 250W-400W MH
LT-SBAL150C 150W 22313 lm 400W-600W MH
LT-SBAL200C 204W 30018 lm 600W-1000W MH
LT-SBAL250C 248W 36632 lm 1000W MH
LT-SBAL320C 318W 42740 lm 1500W MH



Standards | LED Parking Lot Lights

Certificate DLC,  ETL/cETL, CE/RoHS
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1

NO.

Document



IES File


1
Datasheet

LT-SBAL060C
LT-SBAL200C
2
Sales sheet
LT-SBAL100C
LT-SBAL250C

LT-SBAL150C
LT-SBAL320C
