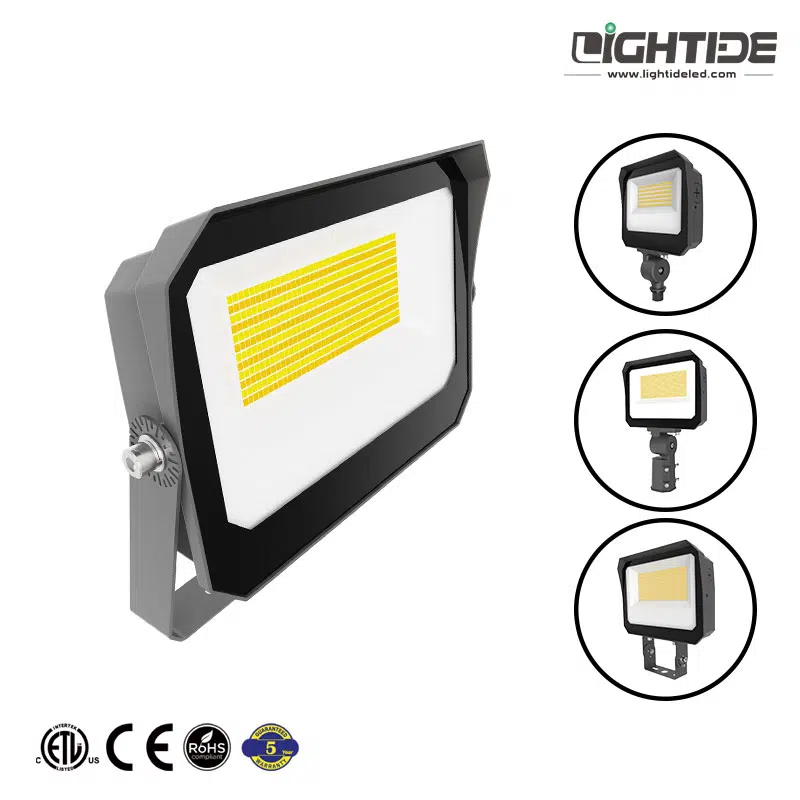

Exterior LED Flood Lights-Slim Profile (FLXW series)

Exterior LED Flood Lights Ultra-Slim Style

Exterior LED flood lights feature a slim profile and powder-coating treatment, which assures corrosion resistance and long-lasting aesthetics. In extreme contrast to conventional metal-halides, led floodlight can bring in 80% of energy savings. Therefore, LED floodlights are an effective and efficient lighting solution.

Excellent Performance – 120 lumens per watt.
Ultra-Slim Profile
5-year Unlimited Warranty – No-compromise warranty covered.
Listings– ETL/cETL, CE/RoHS
Motion sensor or Photocell is available.

Datasheet

Inquiry To Us

Features & Benefits

ETL/CE Certificate

ETL/cETL standard UL1598, CAN/CSA -C.22.2 NO. 250.0. CE certified with EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1.

5-Year Warranty

The complete fixture offers 5~10 years warranty, including the case, led chip, driver and cable.

Rugged Metal

High-duty die-casting aluminum alloy case. Powder-coated finish for rust and corrosion proof.

Ultra-Slim Profile

Slim profile design up to 2.1″ height. Save more package size and easy installation.

Heat Dissipation System

Unique fin shape of heat sink dissipation design to help more heat from leds to dissipate quickly.

Photocell Available

The daylight sensor (photocell) is available for switching on dusk and off at dawn automatically.

Motion Sensor

With insufficient ambient light, the sensor switches on the flood light led when motion is detected.

1-10VDC DIM

Compatible with Lutron 1-10vdc dimmer and other dimmers. Contact us for more.

Overview

FLXW series commercial LED floodlights feature a slim profile with a black powder-coating finish, which assures corrosion resistance and long-lasting aesthetics. Light efficiency up to 120 lumens per watt. Also, 1-10VDC dimmable and occupancy sensors are available.

ETL and cETL listed floodlight led offers 5 years limited warranty. The Acura features reflector designs that deliver maximum beam control for outdoor road lighting, warehouse, building, road and hotel lighting, etc.

Specification

Order Information | Exterior LED Flood Lights

Sample: LT-FLXW100W-HV-50K-PC-90D

LT-	FL	X	W	-100W	-HV	-50K	-PC	-90D

								Beam Angle: Blank= 120^o
							Accessory: PC=Photocell, DM=1-10VDC, SPD=10KV Surge Protection Device
						CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
					Voltage: HV=200-480VAC, Blank=100-277vac
				Power: 10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W, 240W
			D: directional W: washer
		Type Code: A, B, C, D, X
	Flood Light

Specification | Exterior LED Flood Lights

Model#	Rating	Lumen Output	Equivalent	Voltage Option	CCT Option	Beam Angle
LT-FLXW-10W	10W	900 lm	35W MH	100-277VAC /200-480VAC	2700-6500K	120
LT-FLXW-20W	20W	2200lm	75WMH
LT-FLXW-50W	50W	6000 lm	100W MH
LT-FLXW-80W	80W	9600lm	150WMH
LT-FLXW-100W	100W	12000 lm	250W MH
LT-FLXW-150W	150W	18000lm	400WMH
LT-FLXW-200W	200W	23000 lm	600W MH
LT-FLXW-240W	240W	28000lm	1000WMH

Compliant Standards | Exterior LED Flood Lights

Certificate	ETL/cETL, CE/RoHS
EMC/FCC/IC Standard	EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard	UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1

Download

NO.	Description	Document	Version	Date
1	Lightide FLXW Series LED FLoodlights Datasheet	Download	B	2021-01
2	Lightide FLXW Series LED FLood Lights sales sheet	Download	A	2018-08

Inquiry Now

Project Description
