Commercial LED Street Lamp | Tool-Free Maintenance & ENEC/CE Certified

Next-Generation Municipal Roadway Lighting: Engineered for Zero-Tool Maintenance and 100,000+ Hour Reliability

Introducing our cutting-edge LED Street Lamp, designed to revolutionize urban and rural lighting solutions with unparalleled efficiency and versatility. Engineered with a snap-clip locking system, these LED street lights ensure tool-free access for effortless maintenance. With an impressive 140 lumen/watt output, they promise high energy efficiency while the robust 10KV surge protection safeguards against electrical spikes. Engineered for municipal highways, urban roads, and industrial infrastructure. Request more information today.

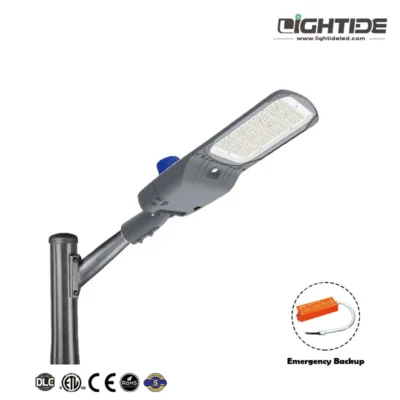

Lightide-snap-clip-locking-LED-street-lights-60W-200W
Feature Engineering Specification Benefit for Infrastructure Projects
System Efficacy 140 Lumens per Watt (lm/W) Maximum lumen output with lower power draw, cutting municipal energy costs.
Certifications ENEC, CE, IP66, IK08 Fully certified for European and international public sector tender compliance.
Surge Protection 10KV SPD (Optional 20KV) Safeguards electronics against grid fluctuations, lightning strikes, and power surges.
Optic Distribution Type II (T2), Type III (T3), Type IV (T4) Precise light placement for narrow urban streets, wide multi-lane highways, and perimeters.
Mechanical Impact IK08 Rated Heavy-duty die-cast aluminum housing protects against vandalism and impact.
Environmental Protection IP66 Waterproof & Salt-Spray Tested Completely sealed against high-pressure water jets and coastal salt fog corrosion.
Pole Adaptability Fits 48mm / 60mm / 78mm spigots Universal fitment for retrofitting existing poles or new infrastructure projects.
Warranty 5-Year Comprehensive Factory Warranty Long-term asset security backed by factory-direct technical support.

etl-ce-rohs-warranty

Order Information | Commercial LED Street Lamp

Sample:  LT-PSL-150W-HV-50K-PC

LT PSL   150W HV 50K PC
              Finish: Blank=grey
Accessory: MS=Motion Sensor, PC=Photocell,
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Std.=100-277vac,  EV=200-240vac
Power: 100W, 150W, 200W, 240W

Desc: LED Street lights



Specification | Commercial LED Street Lamp

Model# Rating Lumen Output (120D) Equiv.
LT-PSL-80W 80W 150 lm/W 400W Metal Halide
LT-PSL-100W 100W 150 lm/W 600W Metal Halide
LT-PSL-120W 120W 150 lm/W 600W MH
LT-PSL-150W 150W 150 lm/W 1000W MH
LT-PSL-200W 200W 150 lm/W 1000 Watts  MH



Compliant Standards | Commercial LED Street Lamp

Certificate ETL/cETL, ENEC, CB, IP66 rated Wet Location, CE, RoHS
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1
  Document   IES File (150-180 LPW)
1
Get Specification Now


    We will answer your email shortly!

    Why Municipalities and EPC Contractors Choose Our Fixtures:

    With over 25 years of experience commercial LED street lamp manufacturing, you can trust us with your peace of mind.

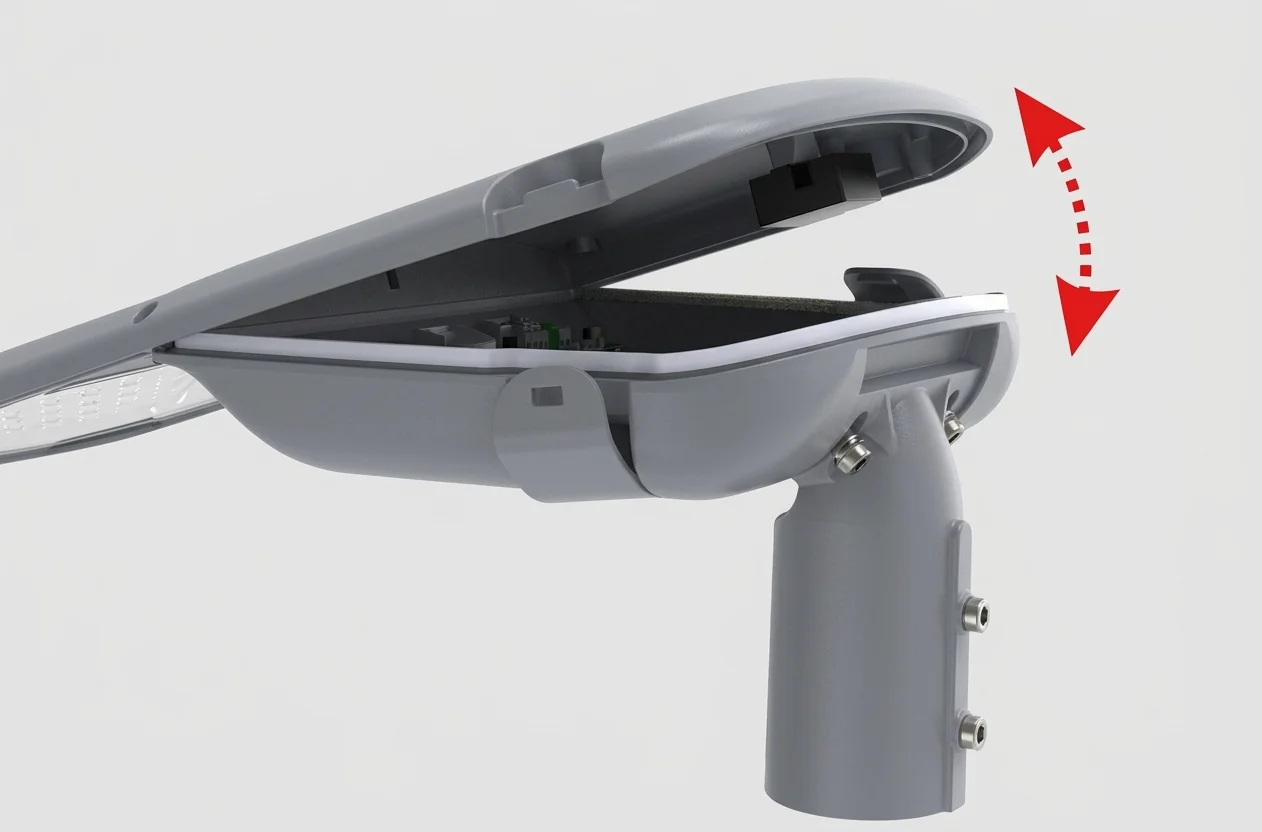

    Snap-Clip Tool-Free Access:

    Drastically reduces O&M costs. The quick-release snap-clip locking mechanism allows maintenance crews to access the driver and wiring compartment in seconds—no tools required at pole height.

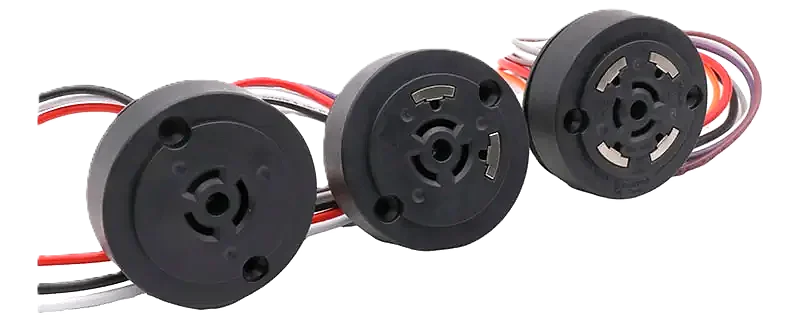

    Lightide Zhaga & NEMA Receptacle and photocell

    Smart-City Ready:

    Factory-fitted with optional Zhaga or 3/5/7-PIN NEMA receptacles, enabling effortless integration with IoT controllers, photocells, and central management systems (CMS).

    15 degree direction adjustment-v1

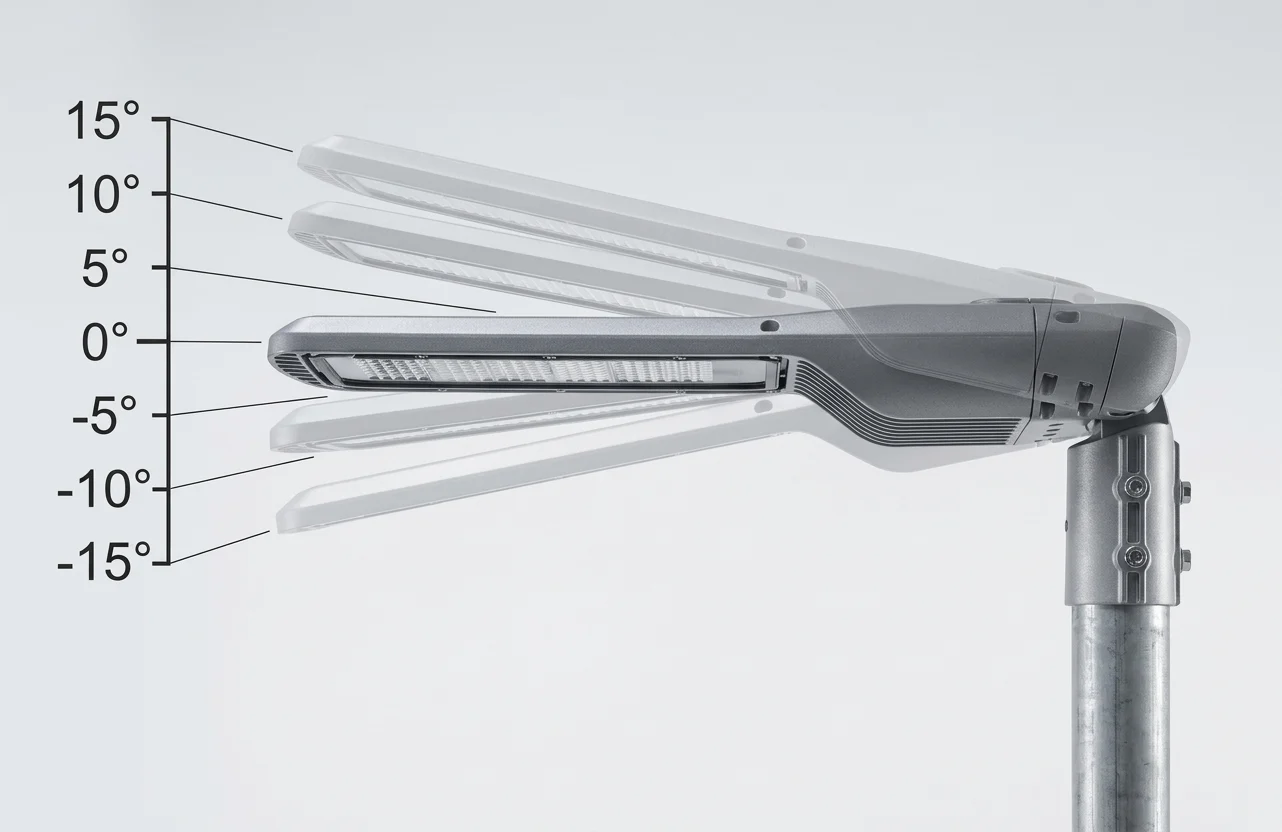

    Flexible Pole Integration:

    Features dual horizontal and vertical installation options with a ±15º adjustable head angle, accommodating 48mm, 60mm, and 78mm pole diameters.

    self cleaning for LED street lamp-v1

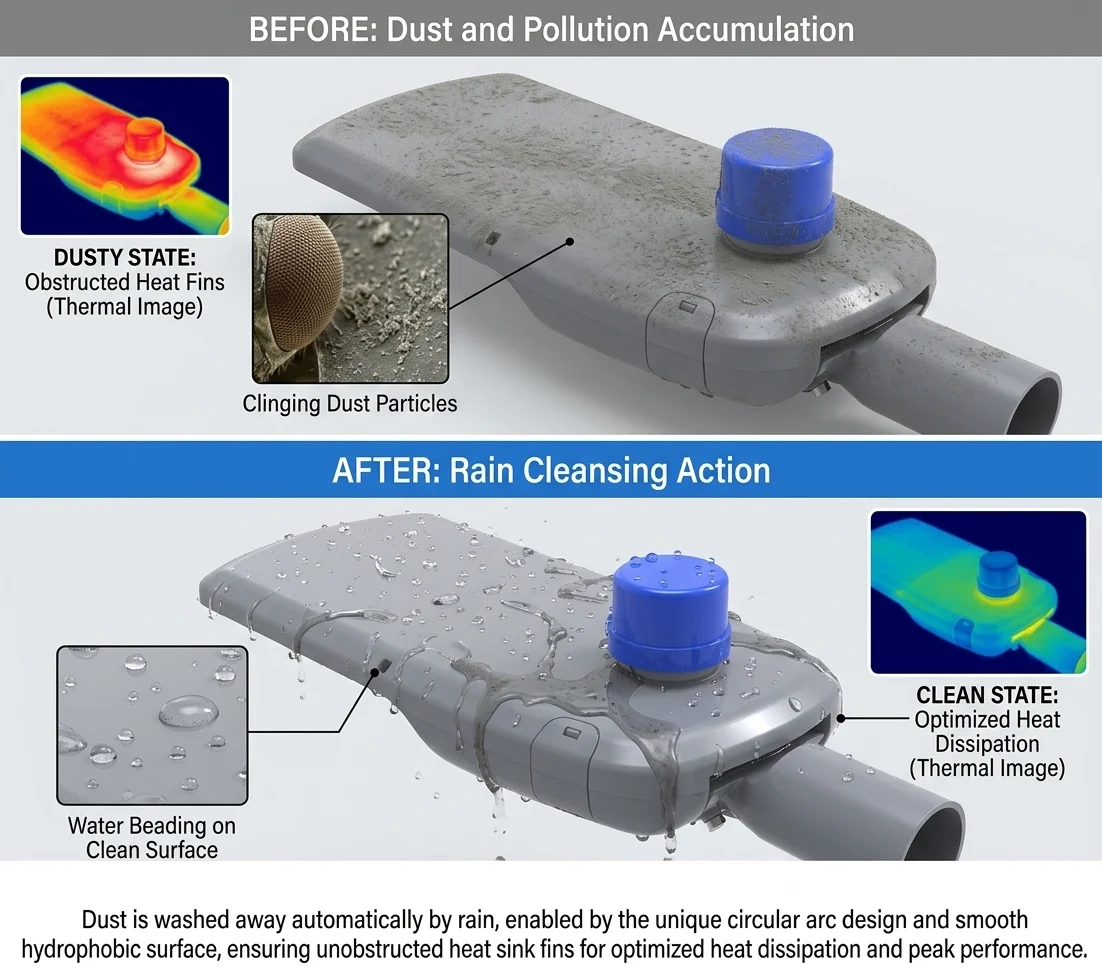

    Self-Cleaning Aerodynamic Design:

    Smooth housing contours prevent dirt, leaves, and debris accumulation, ensuring sustained thermal dissipation and maintaining optic performance in heavy dust or monsoon environments.

    Built to Cut Operational & Maintenance (O&M) Overhead

    For municipal lighting networks, the true cost of a fixture is measured over its operational lifetime.

    • 5-Minute Servicing: The snap-clip latch allows bucket-truck technicians to perform driver or surge protection device (SPD) swaps instantly, minimizing road closures and bucket-truck operation costs.

    • ± 15º Precision Aiming: Built-in inclination adjustment allows field installers to compensate for sagging arms or angled spigots, ensuring uniform lux levels on the road surface.

    • Corrosion-Resistant Housing: Tested under severe salt-spray conditions to ensure the powder-coated die-cast aluminum enclosure will not rust or degrade in high-humidity or coastal environments in your cuntry.

    Engineered for Every Roadway Classification

    Different roads require specialized optical profiles to eliminate dark spots and glare. Our street lighting fixtures offer versatile T2, T3, and T4 beam distributions engineered for compliance with local road lighting standards (such as EN 13201):

    1. Type II (T2) Optics: Optimized for long, narrow roadways, pedestrian walkways, and residential streets.

    2. Type III (T3) Optics: Ideal for general roadway lighting, multi-lane urban streets, and medium-traffic corridors.

    3. Type IV (T4) Optics: Designed for wide arterial roads, highway interchanges, perimeter security, and large parking facilities.

    Take a look at the variety of LED street Lamp we offer

    Delivering high-efficacy 140 lm/W illumination, IP66/IK08 certified resilience, and seamless smart city integration via optional Zhaga or 3/5/7-PIN NEMA receptacles. Designed for long-term ROI across municipal and highway infrastructure in your country.

    140 Lumens per Watt (lm/W)

    Maximum lumen output with lower power draw, cutting municipal energy costs.

    IK08 Rated

    Heavy-duty die-cast aluminum housing protects against vandalism and impact.

    10KV SPD (Optional 20KV)

    Safeguards electronics against grid fluctuations, lightning strikes, and power surges.

    Fits 48mm / 60mm / 78mm spigots

    Universal fitment for retrofitting existing poles or new infrastructure projects.

    Stop wasting it on complicated street light maintenance.

    Stop wasting it on complicated street light maintenance.

    If your maintenance crews are spending 20 minutes at pole height just to unscrew a housing, swap a driver, or check a wiring block, your O&M budget is bleeding.

    IP66 Waterproof & Salt-Spray Tested

    Completely sealed against high-pressure water jets and coastal salt fog corrosion.

    ENEC, CE, IP66, IK08

    Fully certified for European and international public sector tender compliance.

    5-Year Comprehensive Factory Warranty

    Long-term asset security backed by factory-direct technical support.

    Ready to Upgrade Your Roadway Infrastructure?

    Whether you are preparing a municipal tender submission or upgrading an industrial park lighting system in your country, our engineering team provides complete support:

    • Free Photometric Calculations (DIALux Reports)

    • Full Certification Binder (ENEC, CE, IP66, IK08, Salt Spray)

    • OEM / ODM Customization & Tender Sample Delivery
