Project Description

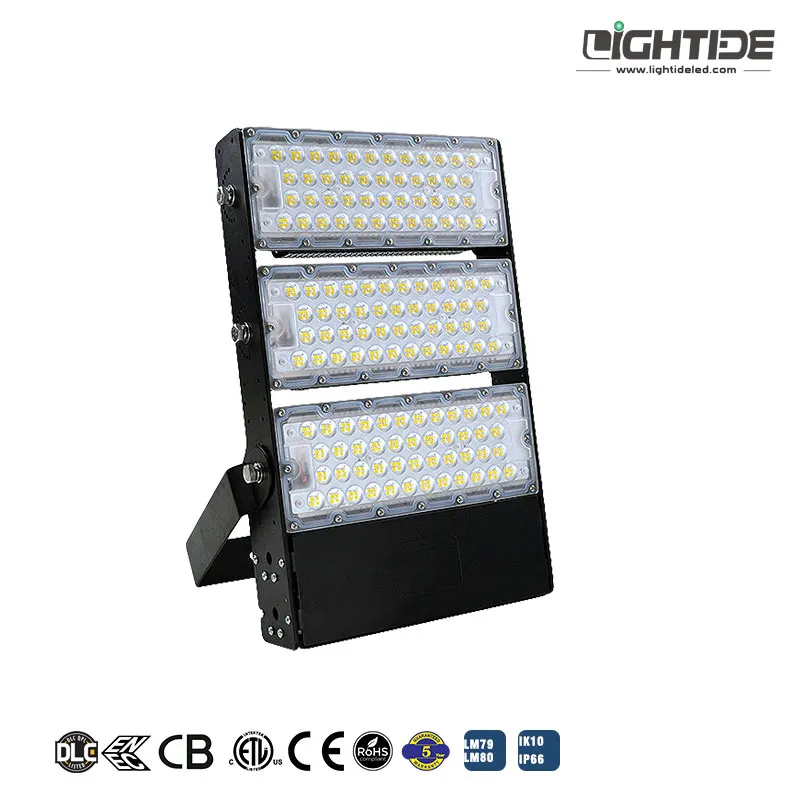

Outdoor LED Flood Lights Rotatable For Stadium Lighting
(LT-FLAD series)
Outdoor LED Flood Lights feature adjustable-direction module design with high performance 160 LPW output. In addition, brand SMD LED and Meanwell driver provides 10 years limited warranty. Moreover, many beam angles of optical designs that deliver maximum beam control for tunnel, square, road lighting, warehouse, building, and hotel lighting, etc.
- Excellent Performance – Up to 160 lumens per watt.
- Rotatable Modules – Module can be rotatable from -45~45 degree adjustable.
- Energy Efficiency – In extreme contrast to conventional metal-halides, these stadium flood lights can bring in 80% of energy savings.
- Long Lifetime – At 8 hours daily use, led stadium flood lights are rated to last 17 years.
- 10-year Limited Warranty
- Listings– ETL/cETL, CE & RoHS, IP66 rated.
Features & Benefits
High Performance
Philips or Osram led chip used. Full fixture 160 lumens per watt output. Replace 400W MH by 100W LED Flood Lights.
Meanwell Driver
Rotatable Module
LED Module can change in the range of -45O~+45O. Easy to adjust the light direction as per actual usage.
Heat Dissipation Sedign
Unique fin shape of heat sink dissipation design to help more heat from leds to dissipate quickly.
Optical Design
Many beam angles of Lens design as spotlight 20° and 40°, narrow light 60°, mid light 90°, and wide 140°x100°
IP66 Rating
IP66 waterproof is suitable for outdoor parking lot, sports fields, and stadium lighting.
10KV Surge Protection
Standard 4-6KV surge protection in the driver. Addition 10KV surge device can be added.
5-Year Warranty
The complete fixture offers 5-10 years limited warranty, including the case, led chip, driver and cable. Contact us for more.
Lighting square, football fields, or stadiums is an experience that continues to get better with time. When these outdoor led flood light fixtures are installed, we need some flood lights directed to the players. This helps people to play well and the audiences are able to see clearly. So choosing a suitable exterior football or stadium flood lights might be a challenge for you. If you are planning to purchase some stadium lighting fixtures in your projects, here there are some choices that will ensure you pick the best commercial outdoor flood lights.
Outdoor LED Flood Lights Order Information
Sample: LT-FLCD-1200W-HV-50K-PC-90D
| LT- | FL | C | D | -1000W | -HV | -50K | -PC | -90D |
|
20D=20o, 40D=40o , 60D=60o, 90D=90o, ST=140° X100o |
||||||||
| Accessory: MS=Motion Sensor, PC=Photocell, DM=1-10VDC, SPD=10KV Surge Protection Device | ||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | ||||||||
| Voltage: HV=200-480VAC, Blanket=100-277vac | ||||||||
| Power: 120W, 240W, 360W, 480W, 720W, 960W, 1200W, 1500W | ||||||||
| D: directional | ||||||||
| Type Code: A, B, C, D | ||||||||
| Flood Light | ||||||||
Outdoor LED Flood Lights Datasheet
| Model# | Input Voltage | Rating Power | Lumen Efficacy | CCT Option | Beam Angle | Surge Protection |
|
LT-FLCD-120W |
100-277vac | 120W | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-240W |
100-277vac |
240w |
160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-360W |
100-277vac | 360w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-480W |
100-277vac | 480w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-600W |
100-277vac | 600w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-720W |
100-277vac | 720W | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-960W |
100-277vac | 960w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-1200W |
100-277vac | 1200w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
|
LT-FLCD-1500W |
100-277vac | 1500w | 160 LPW | 2700-6500K | 20/40/60/90/140X100 | 10KV |
Outdoor LED Flood Lights Standards
| Description | Certificate |
|---|---|
| Certificate | ETL/cETL, CE & RoHS |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Document | Version | Date |
|
1 |
Lightide Outdoor LED Flood Light Fixture Datasheet |
B | 2018-02 | |
| 2 | Lightide Outdoor LED Flood Light Fixture Sales Sheet | A | 2018-08 |
