Project Description

  • ETL outdoor-emergency led-wall pack emergency _wall light fixture

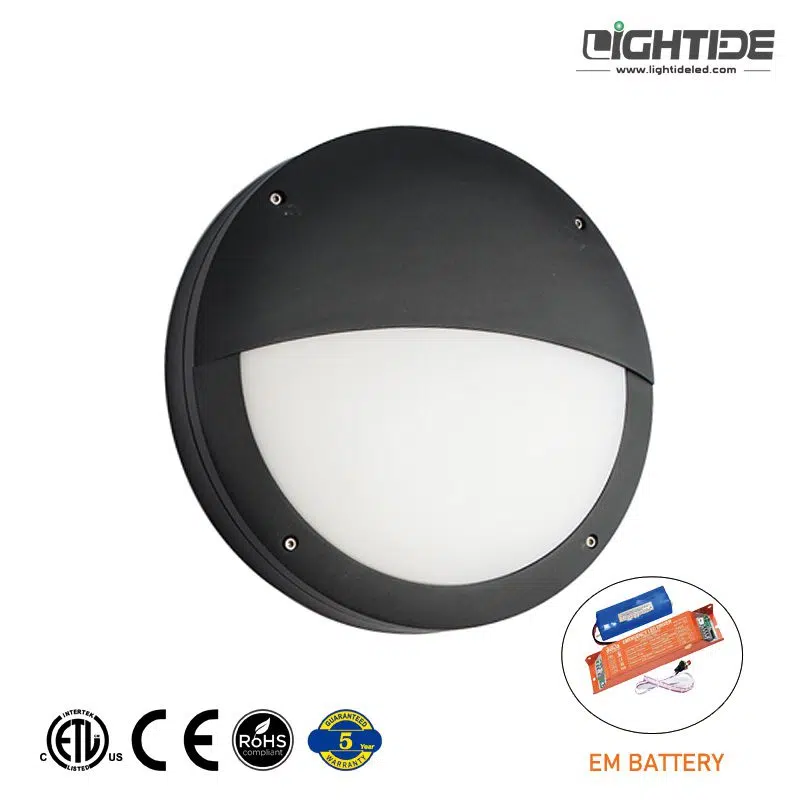

Wall Mounted Emergency Backup LED Flood Lights

(LT-WPCR-EM series)

  • Conforms to UL 924
  • NFPA 101 Compliant
  • Excellent Performance – 140 lumens per watt
  • Power Option – 30W-60W- 80w- 100w
  • Emergency Battery Backup – 90 minutes of work time
  • 5-Year Warranty –  No-compromise warranty covered.
  • Listings: ETL/cETL, CE/RoHS, IP65
Datasheet
Inquiry To Us

Features & Benefits

NFPA-101

NFPA 101 Compliant

An average of 1 foot candle and a minimum of 0.1 foot candle when installed according to guidelines.

DLC commercial-grade

Commercial Grade

High-duty die-casting aluminum alloy case.  Powder-coated finish for rust and corrosion proof.

high-lumen-output-efficacy

High Efficacy 140 LPW

High performance of Philips LED chip to deliver 140 lumens per watt for the full fixture. Replace 400W MH by 100W LED.

DIMMING-LED-wall pack LIGHTS

Std. 1-10vdc Dim

Compatible with Lutron 1-10vdc dimmer and other dimmers.

Emergency-battery-led-high-bay_wall light_wall pack_canopy light_wall lights

Emergency Backup

UL924  listed battery keeps 90 minutes of emergency work time after charging 24 hrs.

DLC IP65_66-_high bayLight-fixture_outdoor lights

IP65 Rated

Waterproof IP65 rating for outdoor security & flood lighting usage.

ETL _CETL LISTED LED GARAGE LIGHTS_wall light fixture_high bay lights

ETL/cETL/CE Listed

ETL/cETL standard UL1598, CAN/CSA -C.22.2 NO. 250.0.  CE certified with EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1.

5-years-warranty-for-Lightide-LED-canopy-led fixture_

5-Year Warranty

The complete fixture offers 5~10 years warranty, including the case, led chip, driver and cable.

Outdoor LED emergency flood lights feature wall mounted style with internal battery backup. High-performance Philips led Wall Packs floodlight can get 140 lumens per watts of output efficacy.

Each LMC emergency fixture provides at least 90 minutes of outdoor illumination with an average of 1 foot candle and a minimum of 0.1 foot candle when installed according to guidelines.

 LED emergency flood lights can work at wide voltage 100-277vac for all world usage.  It is ideal for areas where emergency security needed for the parking lot, entrance, building floodlight, building landscape, and aisle environments.

Order Information

 Sample:  LT-WPCR-60W-EU-50K-EM

LT-WPCR-60W-EU-50K-EM-W
       Finish: W=White, Blanket=Bronze

Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit

CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Blanket.=100-277vac,  EU=100-240VAC
Power: 30W, 40W, 60W, 100W
Shape: S=Square, R=Radius, Q=Quatersphere
Desc: Full Cut-off LED Wall Pack Lights | Security Flood Lights



Specification

Model#RatingLumen  OutputEquiv.Emergency Voltage OptionCCT OptionSize

LT-WPCR30W-EM

28W

3640 lm

100W MH

6W

100-277VAC2700-6500K11.81″x9.06″x7.28″

LT-WPCR40W-EM

42W

5400 lm

150W MH

8W

100-277VAC2700-6500K11.81″x9.06″x7.28″

LT-WPCR60W-EM

62W

8100 lm

 250W MH

15W

100-277VAC2700-6500K11.81″x9.06″x7.28″

LT-WPCR100W-EM

102W

13600 lm

400W MH

20W

100-277VAC2700-6500K11.81″x9.06″x7.28″



Standards

CertificateETL/cETL, CE/RoHs, IP655
EMC/FCC/IC StandardEN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety StanardUL924, UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1

NO.DescriptionFileVersionDate
1Lightide Wall-mounted Emergency LED Flood Lights | LED Wall Packs Sales Sheet
Download
A201905
2Lightide Wall-mounted Emergency LED Flood Lights | LED Wall Packs lights Datasheet
Download
A201902
