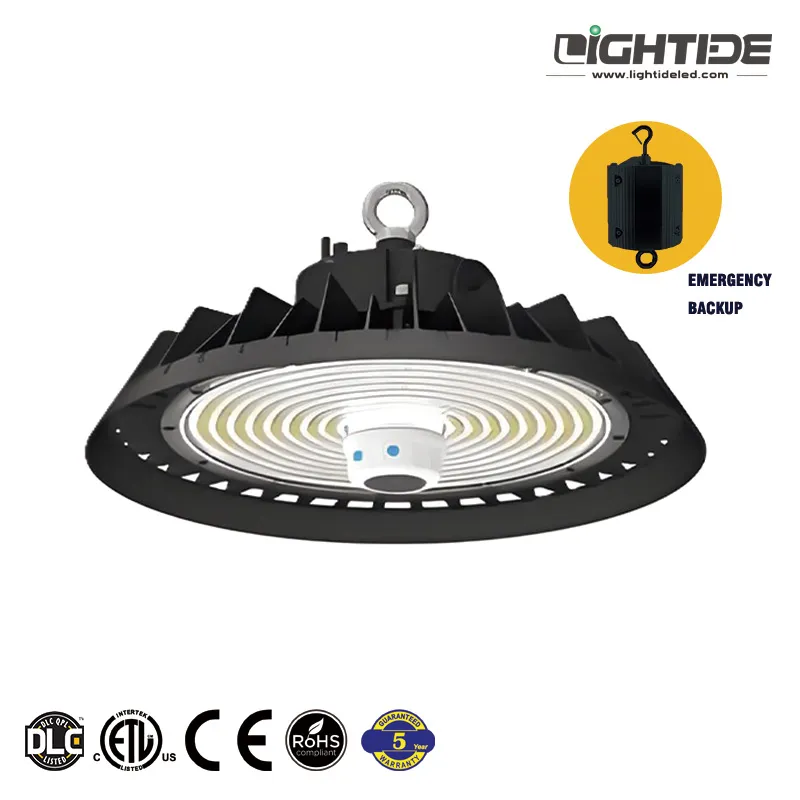

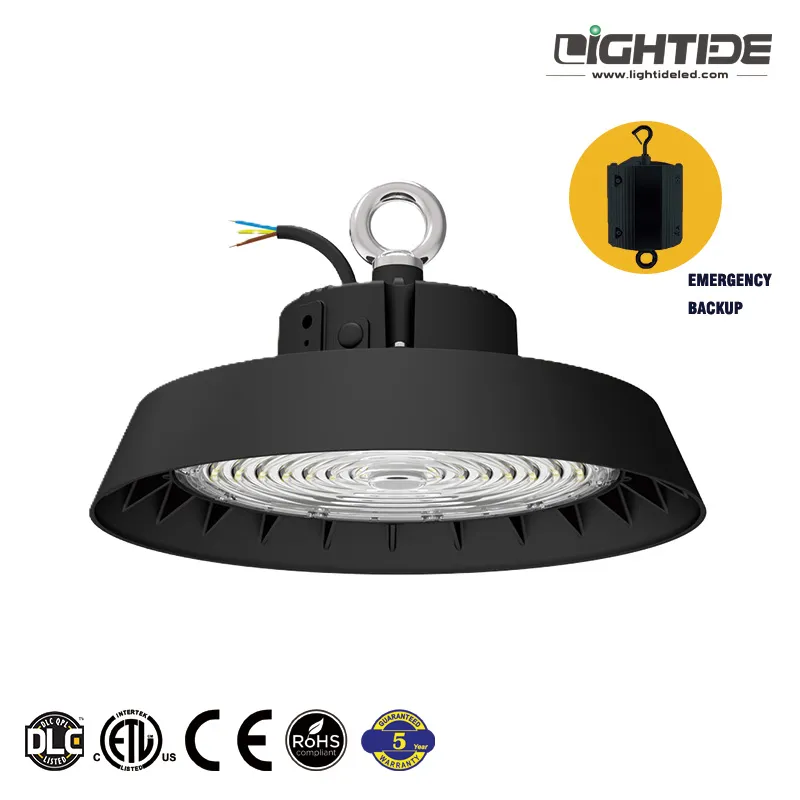

UFO High Bay LED Lights | Shop Light Fixture
UFO High Bay LED Lights can deliver efficient, uniform, high lumen output for high bay and low bay applications. For example, in industrial, retail, and commercial interiors. So it is an easy solution to area lighting needs in industrial and commercial applications.
- High Performance – Up to 190 lumens per watt.
- Energy Efficiency – In extreme contrast to conventional metal-halides, led high bay lights can bring in 88% of energy savings.
- Power Option – 100W, 150W, 200W , 240W
- Long Lifetime – L70>50,000 hrs. High bay led lights are rated to last 17 years base on 8 hours daily use.
- Multi-Installation – Chain Pendant, Surface Mount, conduit mount
- 5-10 Years Warranty
- Listings -DLC QPL, ETL/cETL, CE/RoHS. IP65 Rated.
- Emergency Battery Backup is available.
Features & Benefits
High Efficacy 190 LPW
Outputs up to 190 LPW (*). 100 W LED high bay 400W Equivalent.
Unique Optical Design
Unique distribution optical design for beam angles mid 60°, wide 90°, and flat 120 °
1-10VDC Dim
Compatible with Lutron 1-10vdc dimmer and other dimmers. The dimming program can be custom-designed.
CSA C22.2 # 141, UL 924 listed battery backup available 90 minutes of led high bay emergency lighting.
IP65 Rating
ETL and cETL listed for wet location, especially for the warehouse, market or parking garage lighting.
Occ. Sensor
With insufficient ambient light, motion sensor high bay led lights switches on the lamp when motion is detected.
10-year Waranty
Coming with Meanwell driver, it offers a 10-year limited warranty. Contact us for more detail.
DLC QPL
Many utilities offer lucrative rebates for Lightide’ DLC QPL LED light fixture. It is able to accelerate the payback.
Super Brightness UFO High Bay LED Lights
UFO High Bay led Lights feature high-performance up to 190 lm/w lumen output. So led high bay light 100w can be equivalent to 400 MH lamps. In addition, different optical designs 60, 90, and 120-deg. delivers clear, brighter light when compared to traditional high bay lighting.
In addition, waterproof IP65 rating led high bays perfect for retail stores, wholesale warehouses, grocery chains, malls, showrooms, and plants.
Easy Installation
On the other hand, the hook or pendant mount is an easy and fast installation and Easy wiring. Therefore, we recommended a mounting height of 20 feet to 35 feet.
UFO High Bay LED Lights Order Information
Sample: LT-UBA320-150W-EM-HV-50K-PC-1
| LT- | UB | A | -320 | -150W | -HV | -50K | -MS/EM | -1 | |
|
|
|
Generation: 1=1st, 2=2nd, 3 3rd | |||||||
| Accessory: MS=Motion Sensor, EM=Emergency, PC=Photocell, DM=1-10VDC | |||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | |||||||||
| Voltage: Blanket=100-277vac, HV=200-480vac | |||||||||
| Power: 60W, 100w, 150w, 200w, 240w | |||||||||
| Dimension Code: 280, 320, 400 | |||||||||
| Type Code: A, B, C, D | |||||||||
| Desc: UFO LED High Bay Light | |||||||||
UFO High Bay LED Lights Specification
| Model# | Rating | High Efficacy | Low Efficacy | Voltage Option | CCT Option | Size | |
|
LT-UBA280-100W |
100W |
19012 lm/ 192 LPW |
13600 lm/ 136 LPW | 100-277VAC/200-480VAC | 2700-6500K | D280X160 |  |
|
LT-UBA320-150W |
150W |
27602 lm/ 186 LPW |
19800 lm/ 132 LPW | 100-277VAC/200-480VAC | 2700-6500K | D320X170 | |
|
LT-UBA400-200W |
200W |
37023 lm/ 187 LPW |
26000 lm/ 130 LPW | 100-277VAC/200-480VAC | 2700-6500K | D380X180 | |
|
LT-UBA400-240W |
240W |
43760 lm/ 184 LPW |
31200 lm/ 130 LPW | 100-277VAC/200-480VAC | 2700-6500K | D380X180 | |
UFO High Bay LED Lights Standard
| Certificate | DLC, ETL/cETL Wet Location, CE, RoHs, SAA, CB |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Document | Version | Date |
| 1 | Lightide UFO High Bay LED Lights Datasheet | C | 2018-02 | |
| 2 | Lightide UFO High Bay LED Lights sales sheet | A | 2018-08 | |
| 3 | IES file |
| NO. | Model# & Desc. | IES File | Efficacy | Date |
|---|---|---|---|---|
| 1 | LT-UBA280-100W 100w LED high bay light | 190LPW | 2020-02 | |
| 2 | LT-UBA320-150W 150w LED high bay light | 190LPW | 2020-02 | |
| 3 | LT-UBA400-200W 200w LED high bay light | 190LPW | 2020-02 | |
| 4 | LT-UBA400-240W 240w LED high bay light | 190LPW | 2020-02 |
