Project Description

  • Lightide-DLC-QPL-smaller-UFO-led-light-_high-bay-lights

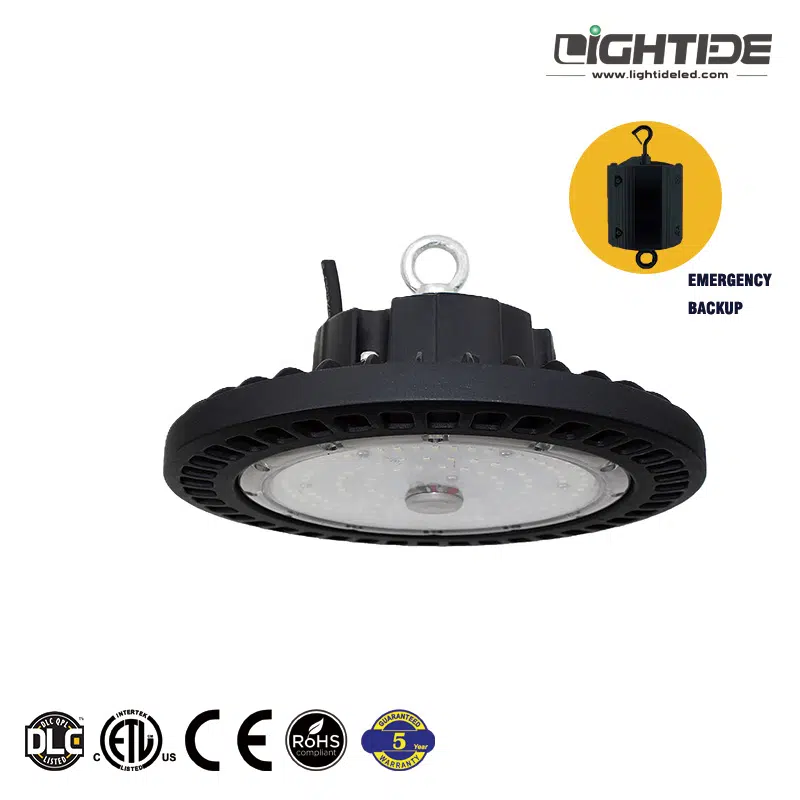

G3 UFO LED High Bay Lamp

Smaller Size | DLC QPL | Emergency Backup

UFO LED high bay lamp features a smaller size and is more efficient than the traditional high hay lights. In addition, Flicker-free also is available for commercial and industrial lights. Moreover, IP66 rated high bay lights can deliver efficient, uniform, high lumen output for commercial, industrial, retail, plant, etc. UL924 battery also is available for emergency lighting.

  • High Efficacy – 140 lumens per watt
  • Flicker-free
  • 5-year Warranty
  • Listings –DLC, ETL/cETL, CE/RoHS. IP66 rated.
  • Emergency Battery Backup is available



dlc-LOGO   etl-ce-rohs-warranty



Datasheet
Inquiry To Us

Features & Benefits

Lightide 3rd-gen ufo led high bay lights_industrial light fixtures

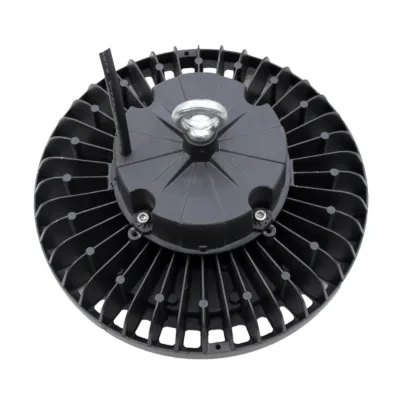

G3 Smaller Size

The new heat sink system is updated for UFO led high bay lights. Only 10 inches (280mm) in diameter, the heat sink dissipation effect not only keeps the same as before, but the new design is more compact without sacrificing performance. Considering Lightide UFO High Bay LED light.

Emergency Backup

  • UL924, CSA C22.2 NO.141.
  • Intelligent emergency detection function. The led emergency high bay lighting can switch to emergency mode automatically when power is off.

  • Overcharge protection, over-discharge protection, and short-circuit protection.

  • Each Lightide’s emergency light fixture provides at least 90 minutes of outdoor illumination.

  • Factory-Installation or Field-Installation for options

Lightide Industrial UFO LED High Bay Lighting Fixtures Battery Backup
UFO-LED-high-bay-light-Mount-Kits

Multi-Mount Ways

Adapt your UFO led lamp high bays to any ceiling and application using these mounting methods, for example,

  1. Pole (or Conduit) Mount
  2. Hook Mount. A “U” shape of the mounting hook is attached to the standard package. This is to say, it enables easy snap hook attachment to existing layouts or supported structural mounts.
  3. Chain Mount. The UFO LED high bay lamp can be chain mounted. Because it is using the U shape of the bracket to enable multi-directional lighting from any ceiling or surface-mounted location.

Mounting Height

This UFO led high bay light battery backup is easily installed to the ceiling with a built-in ring and optional yoke.  No hard-wiring is needed A lot of time and labor costs will be saved. Mount height is for installation reference.

Lightide Industrial UFO LED High Bay Lighting Fixtures Installation Height

Order Information | UFO LED High Bay Lamp

Sample:  LT-UBA320B-150W-HV-50K-EM/PC-W

LT- UBA -320B -150W -HV -50K -EM/PC -WH
              Finish: Blank=Black, WH=White
Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit (Field-Assm), EMA=Emergency Kit (Factory-Assm)
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Std.=100-277vac, HV=200-480vac, EV=200-240vac
Power: 100W, 150W, 200W, 240W
Size Code: 280B, 320B, 400B
Desc: LED UFO High Bay Lights



Specification | UFO LED High Bay Lamp

Model# Rated Lumen Efficacy Equiv. Voltage Dimension Review
LT-UBA280B-100W 100W 140 LPW 400W MH 100-277VAC ø240x140mm REVIEW
LT-UBA320B-150W 150W 400W MH
LT-UBA400B-200W 200W 600W MH ø280x140mm REVIEW
LT-UBA400B-240W 240W 1000W MH



Compliant Standards | UFO LED High Bay Lamp

Certificate DLC, ETL/cETL Wet Location, CE, RoHS
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL924, UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1


NO. Description File Version Date
1 Datasheet
Download
B 2022-01
