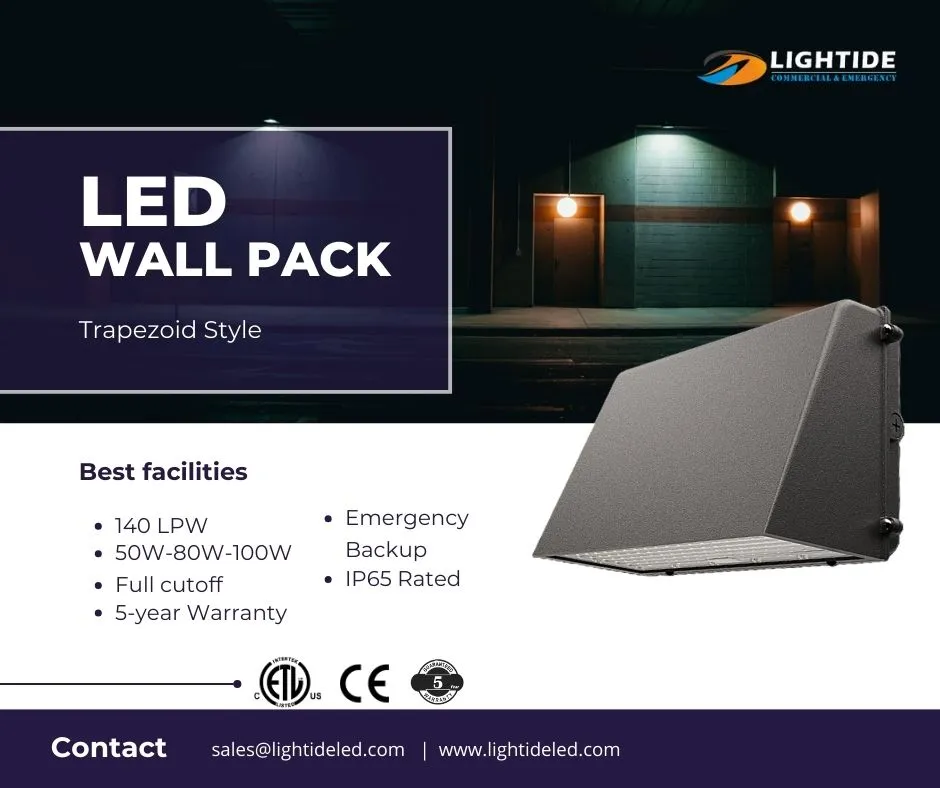

• Lightide-Trapezoid-LED-wall-pack-lights-30w_40w_60w_90w-battery-backup

Battery Operated LED Wall Lights Emergency Backup

UL924 | Intelligent | 140 LPW

Battery Operated Wall Lights LED are built with an emergency battery to provide reliable backup lighting in an emergency. Following a power failure, each emergency wall pack light provides at least 90 minutes of outdoor illumination. In addition, the exterior wall pack led with battery backup is IP65-rated and certificated by ETL & cETL.

  • NFPA 101 & CEC Title 20 Compliant.
  • Integrated indicator with emergency Test Button.
  • Excellent Performance – 140 LPW.
  • Power Option –  30W-40W- 60W-100W.
  • 5-Year Warranty
  • Listings:  ETL/cETL, CE & RoHS, IP65.



etl-ce-rohs-warranty

Features & Benefits

ETL/cETL/CE

UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598

5-Year Warranty

All the led emergency wall pack offers 5 years unlimited warranty. Please ask for more detail.

Emergency Backup

UL924 & CEC Title 20 compliant battery keeps min. 90 minutes of work time.

Motion Sensor

The motion sensor switches on the led emergency wall pack when motion is detected.

Commercial Grade

High-duty die-casting aluminum alloy case.  Powder-coated finish for rust and corrosion proof.

140 LPW Efficacy

High performance 140 lumens per watt for the full fixture.

Dusk to Dawn

Outdoor wall light is available for switching on dusk and off at dawn automatically.

New Heat Sink Design

An average of 1 footcandle and a minimum of 0.1 footcandle when installed according to guidelines.

Intelligent Detection

  • Overcharge/over-discharge protection.
  • Intelligent emergency detection function automatically
  • 1.5 ~ 3 hours of work time.
  • Charge times >500
  • Conforms to UL 924, CSA  C22.2 # 141, EN61347-1, EN61347-2-7
  • Lithium, Li-Fe PO4, or Ni-MH for options.
Lightide Intelligent emergency UFO LED high bay lights-_recessed light
Lightide NFPA 101 Compliant LED Lights

NFPA 101 Compliant

The integrated self-diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper emergency capability Life Safety Code requirements.

Application

In short, outdoor wall Mounted Emergency Light led wall pack is ideal for areas, where maximum wide distribution for

  • Security, doorway, area, and perimeter lighting
  • Emergency backup for hospitals, military, schools, factories, etc.
  • Parking lot,
  • Entrance,
  • Building floodlight
Lightide DLC QPL Emergency Light Wall Pack LED Flood Battery Backup

Order Information | Battery Operated Wall Lights

 Sample:  LT-WPCS-60W-EU-50K-EM

LT- WPC S -60W -EU -50K -EM -W
              Finish: W=White, Blanket=Bronze
Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Blank=100-277vac,  EU=100-240VAC
Power: 30W, 40W, 60W, 100W
Shape: S=Square/trapeziod, R=Radius, Q=Quartersphere
Desc: Full Cut-off LED Wall Pack Lights



Specification | Battery Operated Wall Lights

Model# Rating Lumen  Output Equiv. (MH) Battery Voltage Option CCT Option Size
LT-WPCS30W-EM 28W 3640lm 100W Li-ion/Ni-MH 100-277VAC 2700-6500K 14.17″x11.81″x9.06″ REVIEW
LT-WPCS40W-EM 42W 5400lm 150W REVIEW
LT-WPCS60W-EM 62W 8100lm  250W REVIEW
LT-WPCS100W-EM 102W 13600lm  400W REVIEW


Compliant Standards | Battery Operated Wall Lights

Certificate ETL/cETL, CE/RoHs, IP655
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL924, UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1
