Project Description

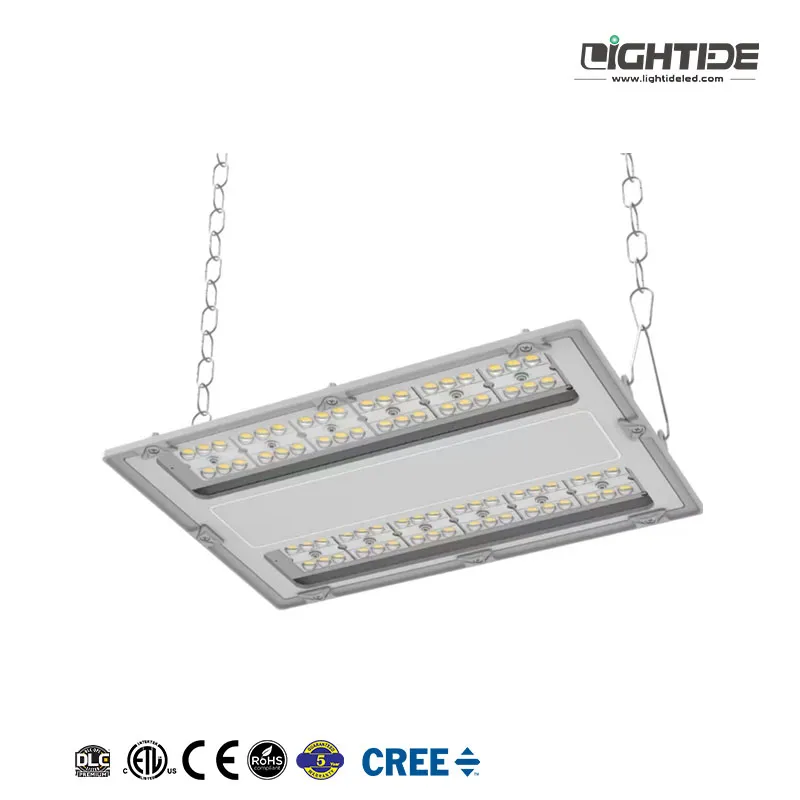

Ultra-Slim CREE LED High Bay Shop Lights w/ Program Dimming
(LT-HBA series)
- Excellent Performance – 135 lumens per watt.
- Energy Efficiency –1000W MH Equivalent by 240W LED high bay lights. In extreme contrast to conventional metal-halides, high bay led lights can bring in 80% of energy savings.
- Program Dimming
- Long Lifetime – L70>54,000 hrs. At 8 hours daily use, Lightide’ s led shop lights are rated to last 20 years.
- Multi-Installation – Chain Pendant, Thread Rod, Surface Mount
- 10-year Limited Warranty
- Listings -DLC Premium, ETL/cETL Wet Location. IP66 waterproof Rated.
- Emergency battery backup is available.
Features & Benefits
Commercial Grade

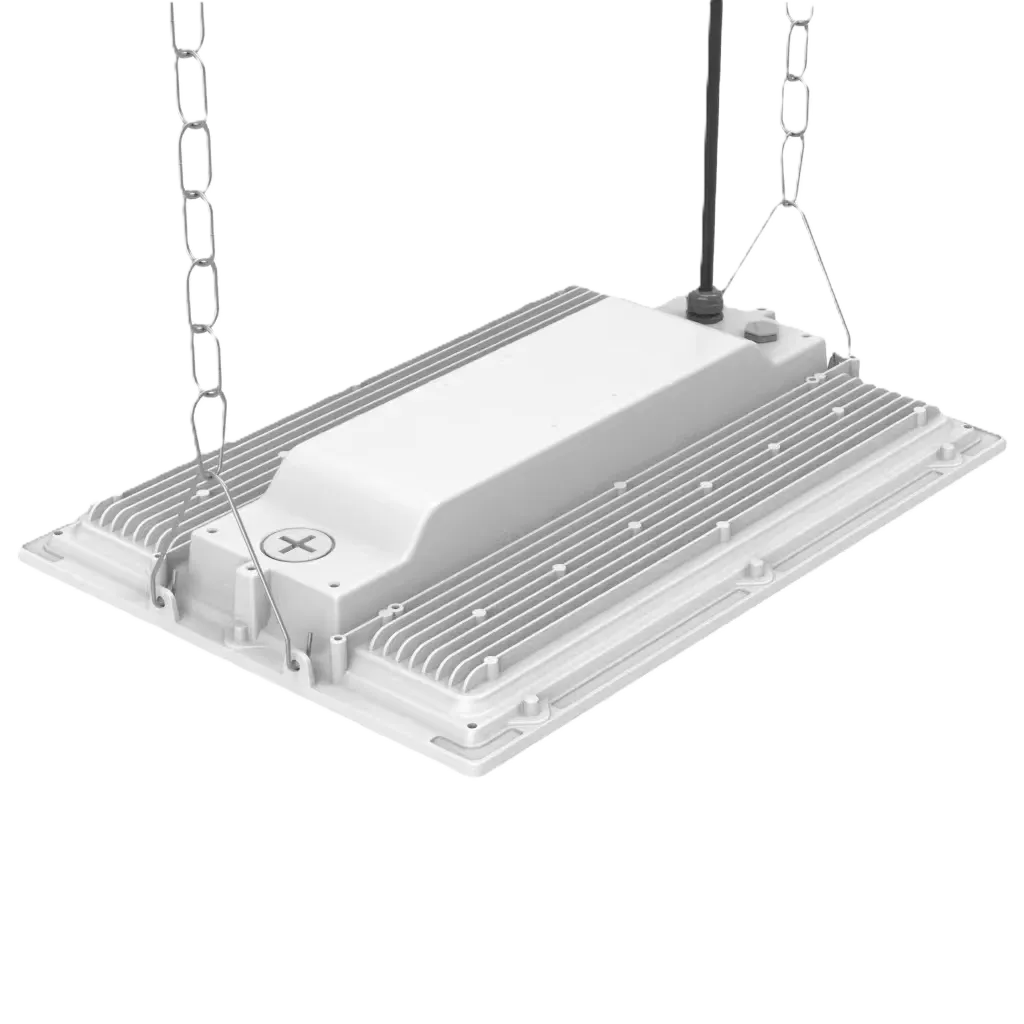

Ultra-Slim 2.2″ thickness of high-duty die-casting aluminum alloy housing and shatter-proof cover.
Premium CREE Chip
High efficacy 135 lumens per watt for energy efficient led high hay lighting.
Unique Lens Design
Unique distribution for optional sharp 50°, wide 80°, Narrow 30°X100° or 60°X150°, and flat 120 °.
Program Dimming
Compatible with Lutron 1-10vdc dimmer and other dimmers. The dimming program can be custom-designed.
Occupancy Sensor
With insufficient ambient light, the occupancy motion sensor (Bi-level control) switches on the lamp when motion is detected.
IP66-Rated
Waterproof IP66 rated for wet or damp location, especially commercial warehouse, industrial, shop lighting.
10-Year Warranty
10 Years Limited Quality Guarantee with warm service and constant technical support.
DLC Premium
Many utilities offer lucrative rebates for Lightide’ DLC QPL LED light fixture. It is able to accelerate the payback.
| CREE LED High Bay Shop Lights feature ultra-slim design to 2.2″ of die-casting aluminum alloy housing. It is designed with the shatterproof polycarbonate lens with module-design of light distributors, which is suitable for supermarket, mall, garage, workshop, and office application. | |||
|---|---|---|---|
LED High bay shop lights used high-quality drivers, for example, Taiwan Meanwell, Inventronics, and son on for any application requiring maximum performance and minimum maintenance. LED High bay light fixture can get more energy savings up to 80% comparison with metal halide high bay light fixtures. | |||
LED High Bay Shop Light can be installed with Chain pendant, thread rod kit, and surface mounting bracket.
| |||
In addition, the CREE LED high bay lighting fixture can provide the adaptive proportion dimming profile for the different levels to perform up to 14 consecutive hours. 3 dimming profiles hereunder are defined as accounting for the most frequently seen applications. For example, we may program dimming function as below sample.
| |||
Furthermore, 240w CREE LED linear led high bay is equivalent to 1000w metal halide high bay light fixtures. DLC premium luminaires coming with 10 years warranty provides the best product quality and best after-sales service. | |||
IP66 rated led shop light fixture is for demanding industrial environments with high ambient humidity wet locations. Check more LED High Bay Lights. |
Order Information
Sample: LT-HBA-150W-HV-50K-PC
| LT | – | HB | A | -150W | -HV | -50K | -PC | -B |
| Finish: B=Black, Blanket=white | ||||||||
| Accessory: MS=Motion Sensor, EM=Emergency, PC=Photocell, DM=1-10VDC | ||||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | ||||||||
| Voltage: HV=200-480VAC, Blanket=100-277vac | ||||||||
| Power: 100W, 150W, 210W, 240W | ||||||||
| Type: A, B, C, D | ||||||||
| Desc: LED High Bay Light | ||||||||
| LT=Com. | ||||||||
Product Information
Sample: LT-HBA-150W-HV-50K-PC
| Model# | Rating | Lumen Output | Equivalent | Voltage Option | CCT Option |
|---|---|---|---|---|---|
LT-HBA-100W | 101W @120VAC / 98W @277VAC | 13794 lm | 250W MH | 100-277VAC /200-480VAC | 2700-6500K |
LT-HBA-150W | 149W @120VAC / 144W @277VAC | 20406 lm | 400W MH | 100-277VAC /200-480VAC | 2700-6500K |
LT-HBA-210W | 208W @120VAC / 200W @277VAC | 277718 lm | 600W MH | 100-277VAC /200-480VAC | 2700-6500K |
LT-HBA-240W | 231W @120VAC / 221W @277VAC | 30851 lm | 1000W MH | 100-277VAC /200-480VAC | 2700-6500K |
Compliant Standards
| Certificate | DLC Premium, ETL/cETL Wet Location |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Standard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Files | Version | Date |
| 1 | Lightide CREE LED High Bay Shop Lights sales sheet | A | 201805 | |
| 2 | Lightide CREE LED High Bay Shop Light datasheet | C | 201812 |
