Outdoor LED Wall Mounted Flood Lights Bulkhead

Flush Mount |  100 LPW  |  IP65 Rated

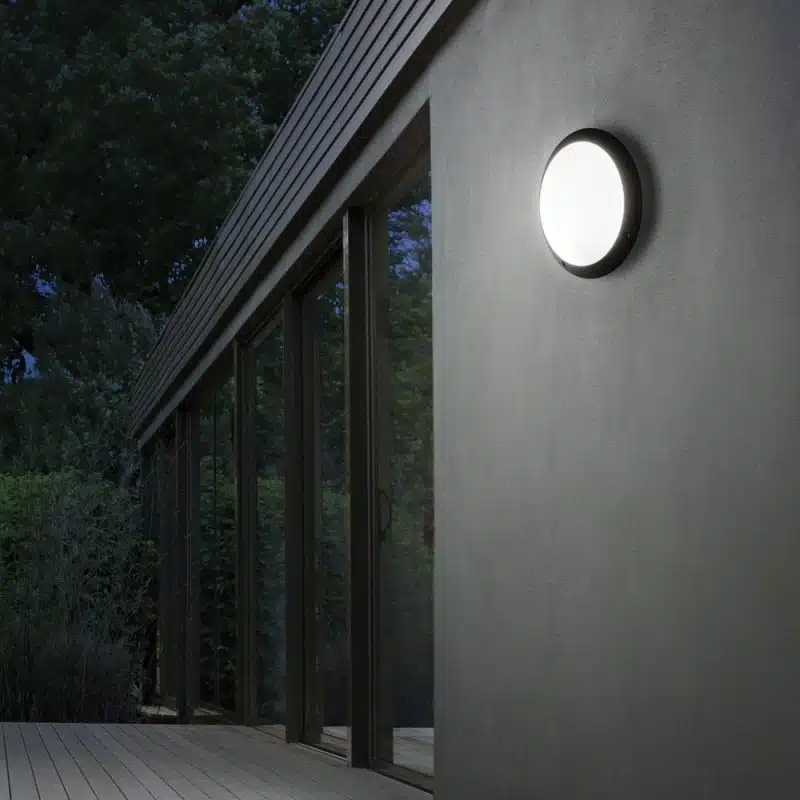

Outdoor LED Wall Mounted Flood Lights are a bulkhead type of lighting fixture that is designed to be mounted on walls or ceilings. It is commonly used in outdoor spaces such as gardens, patios, porches, and driveways. The bulkhead design provides a sturdy and durable housing for the LED lights, making it ideal for outdoor use.

  • Excellent Performance – 100+ lumens per watt.
  • Flush mount for ease of installation and maintenance
  • Black, White finish  for options
  • 5-Year Unlimited Warranty –  No-compromise warranty covered.
  • Listings:  ETL/cETL, CE & RoHS, IP65 rated.
  • Emergency Backup is available.



etl-ce-rohs-warranty

  • Lightide-Bulkhead-outdoor-round-led-wall-lighting-fixtures
  • LED WALL FLOOD LIGHTS

Features & Benefits

ETL /cETL /CE Listed

Match with UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347, EN60598.

5-Year Warranty

Guarantee warm service and constant technical support.

Easy Installation

Hinged back-plate designed for ease of installation and maintenance.

Emergency Available

UL 924 & CEC Title 20 compliant battery backups 90 minutes of work time.

High Performance 100 LPW

Replace 400W halogen lamp with 30W LED Wall Pack.

Std. 1-10VDC Dimming

Compatible with Lutron 1-10vdc dimmer and other dimmers.

Flush Mount

You can mount them on walls or ceilings using screws or brackets.

IP65 Rated

Provides reliable illumination for your outdoor spaces, making them safer for you and your family.

 Order information | LED Wall Mounted Flood Lights

 Sample:  LT-WRA360-30W-HV-50K-PC-WH

LT- WRA360 -60W -HV -50K -PC -WH
            Finish: WH=White, Blank=Black
Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Voltage: Blank=100-277vac,  HV=200-480VAC
Power: 12W, 15W, 20W, 30W
Series: WRA145, 220, 275, 360



Specification | LED Wall Mounted Flood Lights

Model# Rating Lumen  Output Equiv. Voltage Option CCT Option Size
LT-WRA145 12W 1200 lm 100W  Halogen 100-240/277VAC   3000-5700K 145X60 mm
LT-WRA220 15W 1500 lm 150W  Halogen 220×65  mm
LT-WRA275 20W 2000 lm  250W  Halogen 275×65  mm
LT-WRA360 30W 3000 lm  400W  Halogen 360×65  mm


Standards | LED Wall Mounted Flood Lights

Certificate ETL/cETL, CE/RoHs, IP65
EMC/FCC/IC Standard EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1
NO. Description File Version Date
1 Sales Sheet
Download
 A 201902
2  Datasheet
Download
 B 2021
