Project Description
LT-UBA400A-240W-EM |
|---|

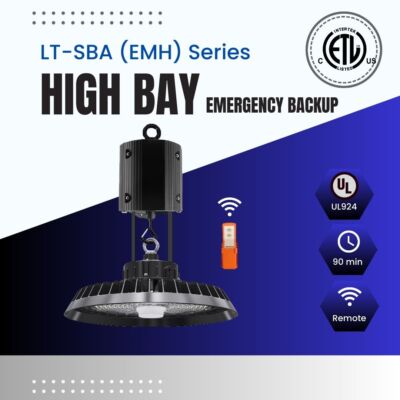

Battery Powered Industrial Lights | LED High Bay 240WBattery-powered industrial lights are made to last for a long time with quality construction and durable materials, such as tempered glass lenses and aluminum housings. The high bay led lights are available with white or black finish for your options. |
- UL924 & CE Emergency Battery
- Emergency Output: 5250 lm.
- NFPA 101 Compliant.
- Pendent installation of UFO led High Bay Lights.
- 100-277vac.
- IP66-rated led high bay emergency lighting fixtures.
- 140 lumen per watt.
- 1000 watts equivalent metal halide.
- ETL/cETL listed,
- CE & RoHS.
- 5 years warranty.
- Warehouse,
- wash operations,
- airports,
- tunnels,
- parking garages,
- stairwells.
- office,
- retail stores, grocery chains, malls.
| LT-UBA280A-100W-EM | |
|---|---|
| LT-UBA320A-150W-EM | |
| LT-UBA400A-200W-EM | |
| LT-UBA400A-240W-EM |
| Performance | ||
|---|---|---|
| Model# | LT-UBA400A-240W-EM | LT-UBA400A-240W-HV-EM |
| Input Voltage | 100-277 VAC | 347VAC |
| Input Power | 240 watts | 240 watts |
| Power Factor | >0.9 | >0.9 |
| Delivered Lumens (lm) | 33400 | 33400 |
| Efficacy (lm/W) | 139.3 | 139.2 |
| Color Rendering Index (CRI) | 80 | 80 |
| Color Temperature (CCT) | 3000K, 4000K, 5000K, 5700K | 3000K, 4000K, 5000K, 5700K |
| Beam Angle | 120o | 120o |
| Equivalent Wattage | 1000 Watts MH | 1000 Watts MH |
| Dimming Control | Available | Available |
| Emergency Backup | ||
| Emergency Battery | Lithium | Lithium |
| Emergency Power | 30 watts | 30 watts |
| Lumen Output | 5250 lm | 5250 lm |
| Emergency Time | 1.5 hrs | 1.5 hrs |
| Charge Time | 24 hrs | 24 hrs |
| Charging Cycles | >500 times | >500 times |
| Dimensions | ||
| Product Length (Inches) | 11.42 | 11.42 |
| Product Width (Inches) | 11.42 | 11.42 |
| Product Height (Inches) | 13.40 | 13.40 |
| Gross Weight (lbs.) | 18 | 18 |
| Material | ||
| Housing | Cold-forging aluminum alloy | Cold-forging aluminum alloy |
| Diffuser | Polycarbonate (60o, 90o) /Glass (120o) | Polycarbonate (60o, 90o) /Glass (120o) |
| Finish | White (Black option) | White (Black option) |
| Waterproof | IP66 | IP66 |
| Longevity | ||
| L70 Life (Hours) | 50000 | 50000 |
| Warranty (Years) | 5 | 5 |
| Certificate | ||
| American Std. | ETL/cETL | ETL/cETL |
| European Std. | CE, RoHS, CB, SAA | CE, RoHS, CB, SAA |
| Available Accessories | ||
| Motion Sensor | Available | Available |
| Daylight Sensor | Available | Available |
