Project Description

LT-UBA400-200W-EM

Emergency High Bay Lighting Fixture LED 200W

Emergency high bay lighting fixtures utilize a maintenance-free Lithium battery.  Moreover, they feature the function of overcharge protection, over-discharge protection, and short-circuit protection.

Lightide-Emergency-led-high-bay-light-fixture-battery-backup-UL924-&-CEC-Title-20

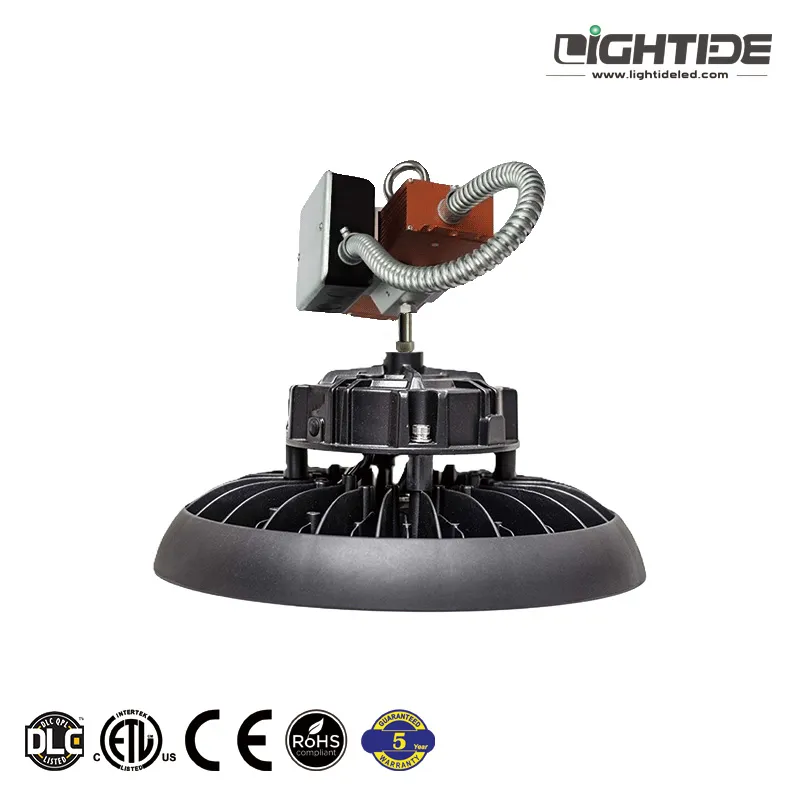

 Emergency Backup LED High Bay

  • UL924 & CEC Title 20 compliant.
  • Emergency time:  90 minutes
  • Emergency Output: 3625 lm
  • Intelligent emergency detection function.

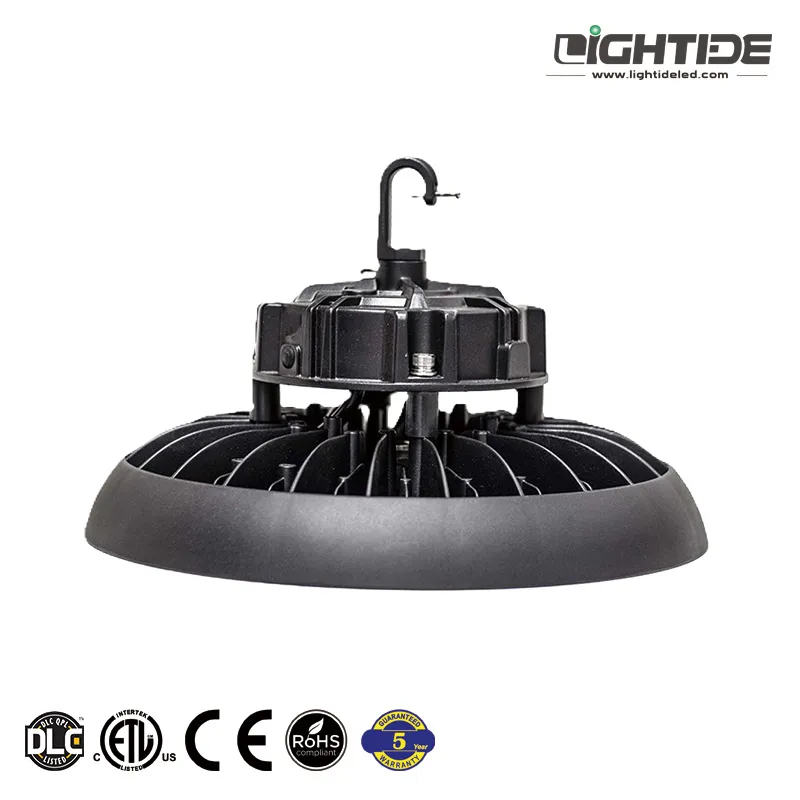

  High-Efficiency High Bay

  • Universal voltage 100-277vac.
  • 140 lumen per watt 1000 watts equivalent metal halide.
  • IP65-rated led ufo high bay emergency lighting fixtures.
  • Pendent-installed UFO led High Bay Lights.
  • High-duty die-casting aluminum alloy case.
  • Color uniformity and even light distribution
  • An occupancy sensor is available.

   Certificate

  • ETL/cETL listed
  • CE & RoHS
  • 5 years warranty.

In short, waterproof IP65 rated emergency led high bay lighting fixtures are idea for

  • Warehouse,
  • airports,
  • parking garages,
  • stairwells.
  • office,
  • retail stores,
  • grocery chains,
  • and malls.
Performance
Model# LT-UBA400-200W-EM LT-UBA400-200W-HV-EM
Input Voltage  100-277 VAC 347VAC
Input Power 200 watts 200 watts
Power Factor >0.9 >0.9
Delivered Lumens (lm) 28000 28000
Efficacy (lm/W) 140 140
Color Rendering Index (CRI) 80 80
Color Temperature (CCT) 3000K, 4000K, 5000K, 5700K 3000K, 4000K, 5000K, 5700K
Beam Angle 120o 120o
Equivalent Wattage 1000 Watts MH 1000 Watts MH
Dimming Control Available Available
Emergency Backup
Emergency Battery Lithium Lithium
Emergency Power 20 watts 20 watts
Lumen Output 3625 lm 3625 lm
Emergency Time 1.5 hrs 1.5 hrs
Charge Time 24 hrs 24 hrs
Charging Cycles >500 times >500 times
Dimensions
Product Length (Inches) 15.75 15.75
Product Width (Inches) 15.75 15.75
Product Height (Inches) 8.19 8.19
Gross Weight (lbs.) 15.6 15.6
Material
Housing High-duty die-casting aluminum alloy High-duty die-casting aluminum alloy
Diffuser Polycarbonate (60o, 90o) /Glass (120o) Polycarbonate (60o, 90o) /Glass (120o)
Finish Black (white option) Black (white option)
Waterproof IP65 IP65
Longevity
L70 Life (Hours)  50000  50000
Warranty (Years) 5 5
Certificate
American Std. ETL/cETL ETL/cETL
European Std.  CE, RoHS, CB, SAA CE, RoHS, CB, SAA
Available Accessories
Motion Sensor Available Available
Daylight Sensor Available Available
