Project Description

  • EMERGENCY-battery-led-vapor-tight-light fixture

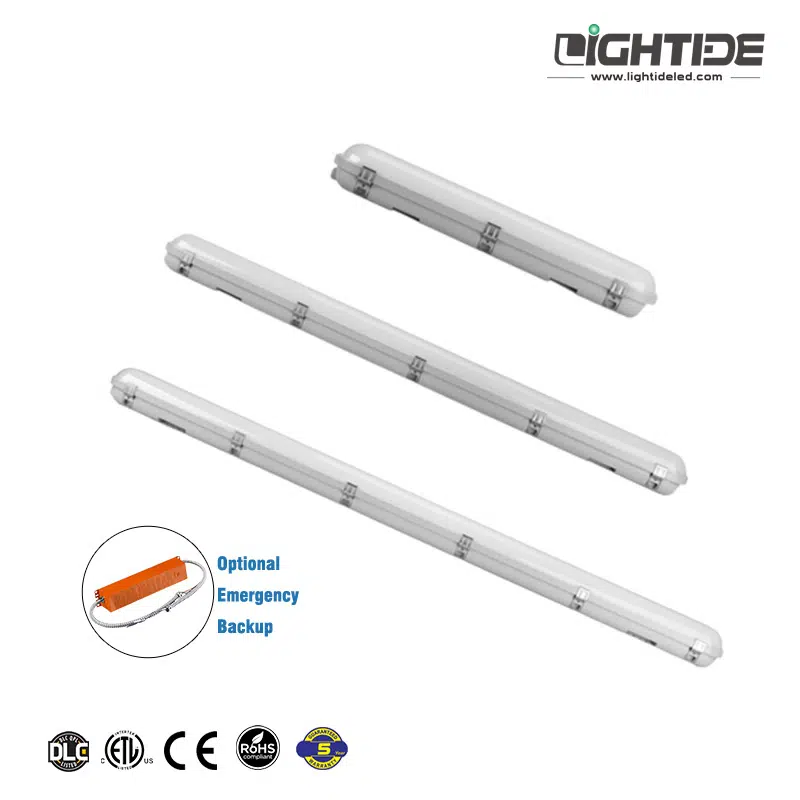

Emergency Backup LED High Bay Lights| Linear Vapor-Tight Fixture

Emergency backup led high bay lights are designed to replace less-efficient fluorescent strip lights in the interior and exterior locations.  Such as warehouse, airports, tunnels, parking garages, and so on. Most importantly, these fixtures are built with a UL924 & CE certified battery for backup lighting,  to get people out of the building in case of power outages, blackouts, and fires, etc.

  • Emergency Battery Backup: 90-180 minutes of work time.
  • Conforms to UL 924 & NFPA 101 Compliant
  • High Efficacy of up to 150 lumens per watt.
  • 5VA rated housing
  • Uniform illumination – Clear or frosted polycarbonate cover
  • 5-year Warranty
  • Listings: DLC Premium, ETL/cETL Wet Location, CE/RoHS
Datasheet
Inquiry To Us

Features & Benefits

Emergency backup led high bay

Emergency backup led high bay w/ Vapor-Tight light is NFPA 101 Compliant. Most importantly, following a power failure, each fixture provides at least 90 minutes of outdoor illumination with an average of 1 foot-candle and a minimum of 0.1 foot-candle when installed according to guidelines.

UL924 Approved

Emergency battery input 100-305vac and meets with standard CSA C22.2 NO. 141 and UL924. In addition, it also has an intelligent emergency automatic detection function to achieve emergency mode when power is off.

1-10vdc dimming Available

Vapor tight led light with battery backup also is built with a 1-10vdc dimming driver and motion sensor.  So it is powerful lighting in harsh environments, protecting the light source from dust and moisture. The durable construction of the fixture features a full shatterproof plastic fixture.

High Efficacy 150 lumens per watt

With the high-performance of SMD LEDs, emergency backup led high bay light outputs up to 150 lumens per watt, and are designed to replace less-efficient fluorescent strip lights.  In short, LED linear high bay lights are widely used for interior and exterior wet locations, such as car wash operations, airports, tunnels, maintenance areas, parking garages, and stairwells.

Meanwhile, surface or pendant mount kits are available for 2 ft. – 8 ft. sizes from 20 watts to 100 watts.

Emergency backup led high bay Order Information

 Sample:  LT-TPA456-50K-EM-PC-F

LT-TP-A-4-56-50K-EM-3H-F
        Cover Option: F=Frosty, C=Clear
Emergency Time: Std.=90 minutes, 2H=120 minutes, 3H=180 minutes
Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit
CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K
Power  code: 20=20w, 36=38w, 56=50w, 80=80w, 10=100w
Length  Code: 2=2′, 4=4′, 5=5′, 8=8′
 Code: A, B, C
Desc: Vapor Tight rated led high bay light



Emergency backup led high bay Specification

Model#Rating PowerLumen OutputEquivalentTime (*)

Emergency (*)

Voltage Length

LT-TPA220-EM

20W

2600 lm (Clear)

2x16w CFL90 minutes

5W

100-277vac

2′

REVIEW

LT-TPA436-EM

38W

5700 lm (clear)

2X36W CFL90 minutes

10W

100-277vac

4′

REVIEW

LT-TPA456-EM

50W

7500 lm (clear)

2x40W CFL90 minutes

10W

100-277vac

4′

REVIEW

LT-TPA880-EM

80W

12000 lm (clear)

4X56W CFL90 minutes

15W

100-277vac

8′

REVIEW

LT-TPA810-EM

100W

15000 lm (clear)

 4X56W CFL90 minutes

15W

100-277vac

8′

REVIEW

(*) Emergency power based on 90 minutes.  It will be difference based on different time.



Emergency backup led high bay Standards

CertificateDLC Premium, ETL/cETL Wet Location
EMC/FCC/IC StandardEN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005
Safety Stanard

UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1,

UL924, NFPA 101 Compliant

NO.DescriptionDocumentVersionDate
1Lightide Emergency Backup Vapor-tight led high bay lights datasheet
Download
A2020-02
2Lightide Emergency Backup Vapor-tight led high bay lights sales sheet
Download
A2018-08
