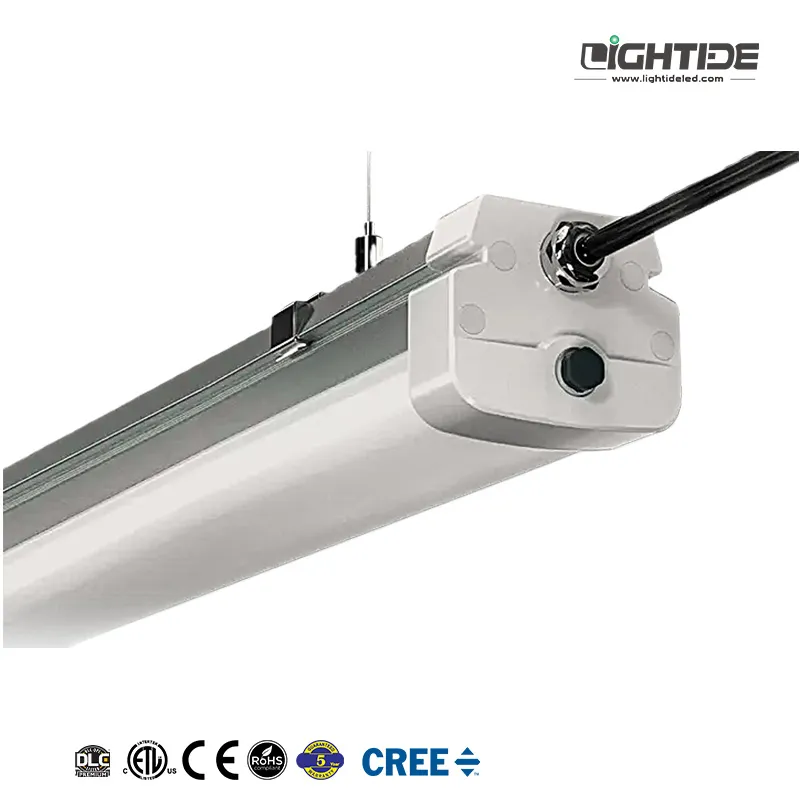

LED Linear Light Fixture Tri-proof
Engineered for the Extremes: The Aluminum LED Linear Tri-Proof Light Fixture
LED Linear Light Fixture is fully Tri-Proof rated—completely sealed against dust, water, and corrosion. With UL, CSA, and CE certifications and a rock-solid 5-year warranty, this isn’t just a purchase; it’s a long-term investment that pays for itself in energy savings and zero maintenance headaches.
With features like DALI dimming, high efficacy 140 LPW, optional emergency backup, and industry certifications, this linear lighting fixture is designed to meet the needs of modern spaces while delivering exceptional performance year after year.
- Excellent Performance – 140 lumens per watt.
- DALI dimming available
- Linkable Directly with end-to-end connectors.
- Pure aluminum housing
- Clear/Frosty cover for options
- CRI>80
- Surface mount, Pendent mount
- Long Lifetime – At 8 hours daily use, led shop lights are rated to last 17 years.
- 5-year Warranty – No-compromise warranty covered.
- Listings: ETL/cETL, CE/ROHS
- Emergency Battery Backup is available.
Order Information | Tri-proof LED Linear Light Fixture
Sample: LT-TPLH440-50K-PC
| LT- | TPLH | -4 | -40 | -50K | -EM | -PC | |
| Accessory: MS=Motion Sensor, PC=Photocell, EM=Emergency Kit | |||||||
| CCT: 30K=3000K, 40K=4000K, 50K=5000K, 57K=5700K | |||||||
| Power code: 20=20w-40w, 40=40w-80w, 60=60w-100w | |||||||
| Length Code: 2=2′, 4=4′, 5=5′ | |||||||
| Desc: Tri-proof rated led linear high bay light fixture | |||||||
Specification | Tri-proof LED Linear Light Fixture
| Model# | Power Options | Lumen Output | Emergency Backup | Length | Voltage Option | CCT Option |
|
LT-TPLH220 |
24W 30W 36W |
3,360 lm 4,200 lm 5,040 lm |
Available |
2′ |
|
2700-6500K |
|
LT-TPLH440 |
48W 60W 72W |
6,700 lm 8,400 lm 10,080 lm |
Available |
4′ |
||
|
LT-TPLH560 |
60W 72W 96W |
8,400 lm 10,080 lm 13,000 lm |
Available |
5′ |
||
|
LT-TPLH880 |
80W |
11,200 lm |
Available |
8′ |
Compliant Standards | Tri-proof LED Linear Light Fixture
| Certificate | DLC , ETL/cETL , TUV, SAA, CE, RoHS |
| EMC/FCC/IC Standard | EN55015, EN61547, EN61000-3-2/3, FCC part 15, ICES-005 |
| Safety Stanard | UL1598, CAN/CSA -C.22.2 NO. 250.0, EN61347-1, EN61347-2-13, EN60598-2-1, EN60598-1 |
| NO. | Description | Document | Version | Date |
|
1 |
Lightide Linear LED Tri-proof lights datasheet |
 |
B | 2021 |
| 2 | Lightide Linea LED LED Tri-prood lights sales sheet | |
A | 2019 |
Feature & Benefit
This advanced LED linear lighting fixture is engineered to deliver exceptional illumination while standing up to the toughest environments. Here’s a closer look at what makes it a standout choice for your lighting needs.
The Smarter Way to Light Your Business
DALI Dimming for Precision Control
The LED Linear Tri-Proof Light Fixture is equipped with DALI (Digital Addressable Lighting Interface) dimming capabilities, giving you complete control over your lighting. Whether you need to set the mood in a retail space or adjust brightness levels in an industrial setting, DALI dimming provides seamless and precise control with minimal effort.
Don’t Be Left in the Dark.
Optional Emergency Backup for Added Security
Safety and reliability are non-negotiable when it comes to lighting. That’s why this fixture offers an optional emergency backup feature, ensuring uninterrupted illumination during power outages or emergencies. This added layer of security makes it an excellent choice for critical environments such as hospitals, parking garages, and industrial facilities.
